Acceleration Sensor Body: Terminal

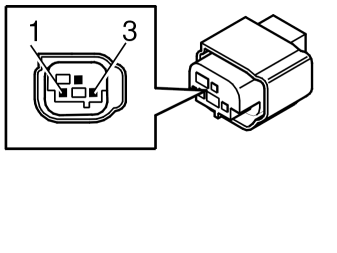

Fig 1: Connector Terminal Identification
GLL106237Courtesy of VOLVO CARS CORPORATION
Connector terminal  Control module terminal  Signal type  Other
#1 #A10 front left
#A22 front right
#A17 rear left		 Signal, acceleration sensor Voltage
#2 #A19 front left
#A19 front right
#A23 rear left		 Ground DC voltage
#3 #A13 front left
#A13 front right
#A13 rear left		 Power supply +5 V DC voltage
