Controller Area Network (Can) Message

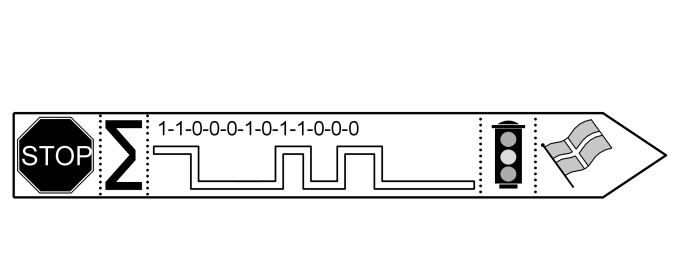

Fig 1: Identifying CAN Message

Courtesy of VOLVO CARS CORPORATION

The message consists of the following components:

• Identifier ("flag"), which indicates the message identity and prioritisation.
• Data information (value, information, etc.).
• Check sum, used to check that the message has arrived correctly
• Stop signal, which indicates that the message has finished.

A complete CAN-message is called a frame.
