Removing The Tailgate Lock

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2014 Volvo XC90, 2013 Volvo XC90, 2012 Volvo XC90, 2011 Volvo XC90, and 2010 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

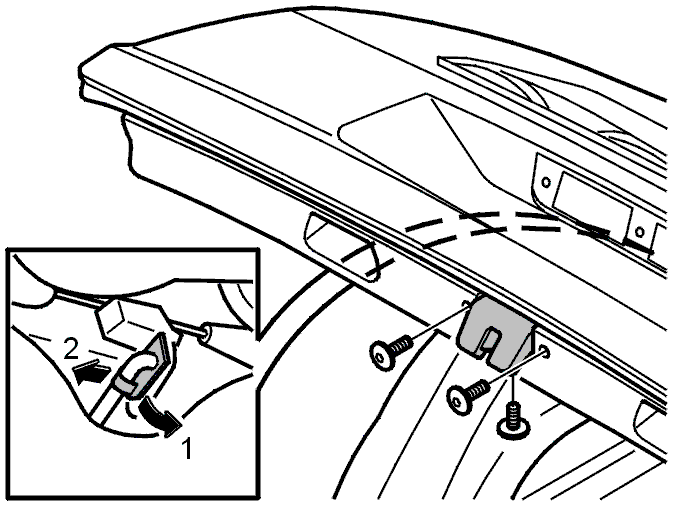

Fig 1: Identifying Upper/Lower Tailgate Panel, Screws, Disconnecting Connector And Link, And Pulling Out Lock

Courtesy of VOLVO CARS CORPORATION

Remove the upper tailgate panel. See PANEL, TAILGATE, REPLACING
Remove the lower tailgate panel. See LOWER TAILGATE PANEL
Remove the three screws
Disconnect the connector
Disconnect the link
Pull out the lock.
