BLUETOOTH Control Module: Removal

WARNING: This page is about a different car, the 2010 Volvo V70, 2009 Volvo V70, and 2008 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Fig 1: Identifying Ignition Switch In OFF Position

Courtesy of VOLVO CARS CORPORATION

Remove glove compartment, see GLOVE COMPARTMENT

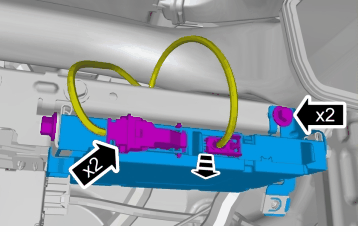

Fig 2: Removing Bluetooth Control Module (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

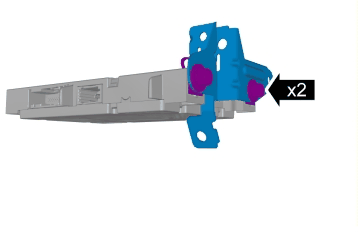

Fig 3: Removing Bluetooth Control Module (2 Of 2)

Courtesy of VOLVO CARS CORPORATION
