Removing Camshaft Position (CMP) Sensor

Remove the preheating pipe from the air cleaner (ACL):Applies only to B6xx4S engines .

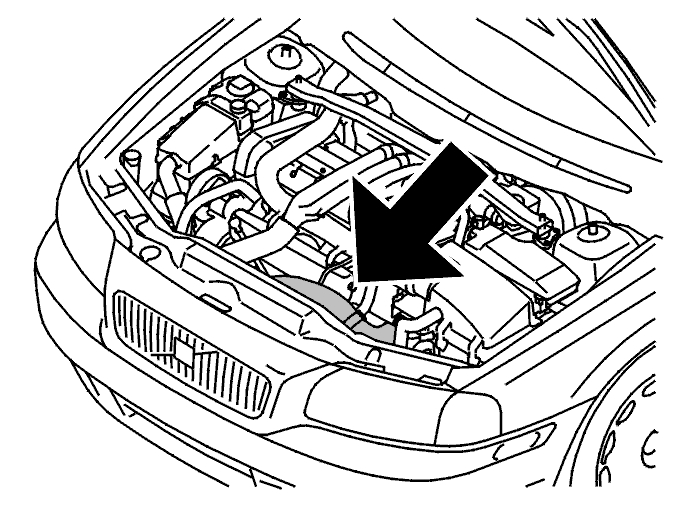

Fig 1: Identifying Intake Manifold Between Front Cover Plate & Air Cleaner Housing

Courtesy of VOLVO CARS CORPORATION

Applies only to B6xx4T

Fig 2: Identifying Clamp On Hose Between Mass Air Flow Sensor And Pipe To Turbocharger

Courtesy of VOLVO CARS CORPORATION

Remove the clamp on the hose between the mass air flow (MAF) sensor and the pipe to the turbocharger (TC)
Remove the turbocharger (TC) control valve from the air cleaner (ACL) housing
Disconnect the turbocharger (TC) control valve connector
Remove the air cleaner (ACL) housing. Place it to one side
Remove the hose clamp from the crankcase ventilation and the heater hose.

Fig 3: Camshaft Position Sensor Connector

Courtesy of VOLVO CARS CORPORATION

Hose bracket.

Disconnect the connector at the bracket

Remove the cable from the clamp on the cylinder block.

Remove the camshaft position (CMP) sensor housing.Applies only to B6xx4T engines .

Remove the sensor mounting screw. Pull off sensor.
