Installing The Inlet Pipe

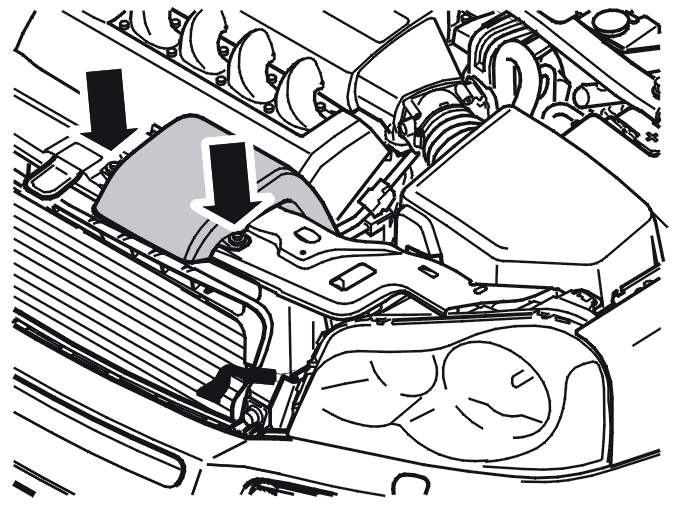

Fig 1: Identifying Inlet Pipe
GLL149406Courtesy of VOLVO CARS CORPORATION

Install the inlet pipe to the air cleaner (ACL) housing.
