Diagnostic Trouble Code (DTC) Information DDM-0013

Condition

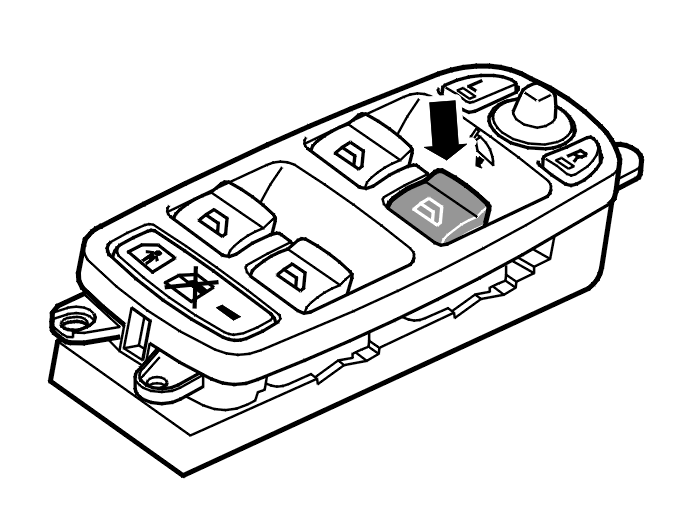

Fig 1: Identifying Passenger Window Door Control

Courtesy of VOLVO CARS CORPORATION

The diagnostic trouble code (DTC) is stored if the control module registers that the driver's door button for operating the power window mechanism in the passenger door has been pressed for more than 60 seconds.

Substitute Value

• None.

Possible Source

• The button has jammed in the pressed in position
• Damaged button for the power window mechanism.

Fault symptom[s]

• Passenger side power window mechanism does not operate.
