Piston Cooling Valve

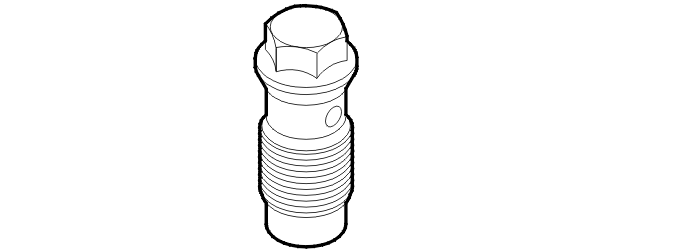

Fig 1: Identifying Piston Cooling Valve
GLL140505Courtesy of VOLVO CARS CORPORATION

The piston cooling valve regulates the oil flow by letting oil through the piston cooling nozzles.
