Installing The Control System

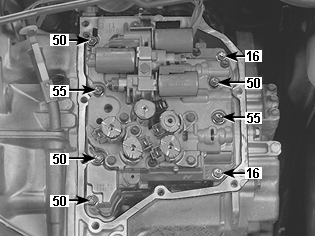

Fig 1: Control System Screws

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure the lever for the gear selector is set to neutral.

Align the control system on the lever for the gear selector.

Install:

the screws for the control system
a new gasket for the cover on the control system. Note that the screws are of different lengths (measured in mm).

Tighten the screws alternately to light contact. Then tighten alternately. Tighten to 10 Nm .
