Checking Connector, Wiring And Components

Check the heated oxygen sensor (HO2S) connector. Check for contact resistance and oxidation.

Check the signal cable (-) between heated oxygen sensor (HO2S) terminal #5 and control module terminal #A44 (#A44). Check the cable for calibration current between heated oxygen sensor (HO2S) terminal #2 and heated oxygen sensor (HO2S) terminal #A69 (#B9). Check for an open-circuit.

Check the cable for calibration current between heated oxygen sensor (HO2S) terminal #2 and control module terminal #A69 (#B9). Check the cable for pump current between heated oxygen sensor (HO2S) terminal #6 and control module terminal #A25 (#A54). Check for a short-circuit to each other.

If the connector and cables are OK try a new heated oxygen sensor (HO2S).

Remedy as necessary.

Other information:

• To connect the breakout box / access the control module, see CONNECTING THE BREAKOUT BOX
• For B5xx4T, see HEATED OXYGEN SENSOR (HO2S), REPLACING
• For B6xx4T, see HEATED OXYGEN SENSOR (HO2S), REPLACING .
• For 6 cylinder engines -2004, see SIGNAL SPECIFICATION
• For 6 cylinder engines 2005-, see SIGNAL SPECIFICATION .
• see CHECKING WIRING AND TERMINALS .

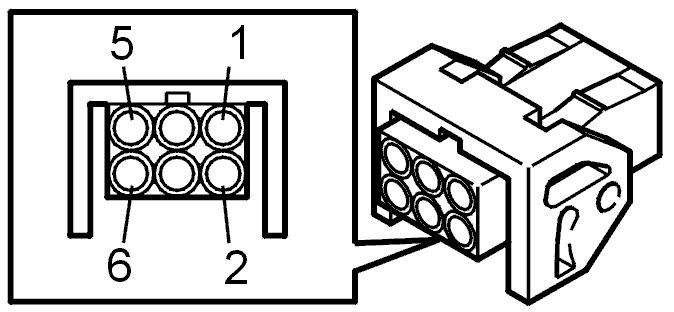

Fig 1: Identifying Front Heated Oxygen Sensor (HO2S) Connector Terminals

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Ohm Meter

Courtesy of VOLVO CARS CORPORATION

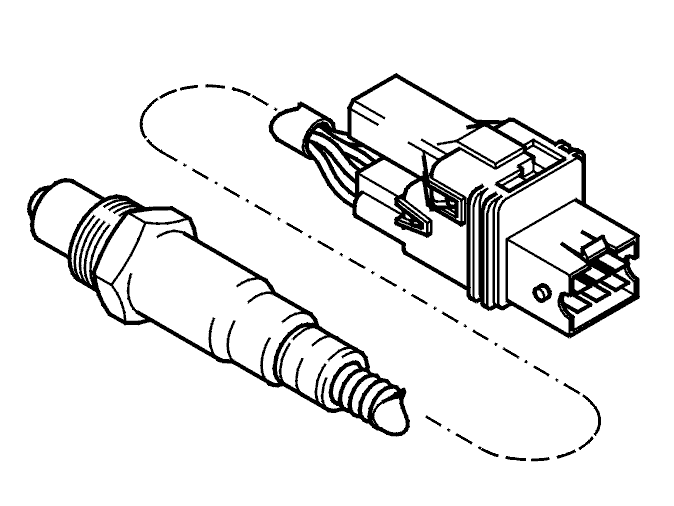

Fig 3: Identifying Front Heated Oxygen Sensor (HO2S)

Courtesy of VOLVO CARS CORPORATION

• Continue

  Refer to VERIFICATION
