Installing Upper Intake Manifold

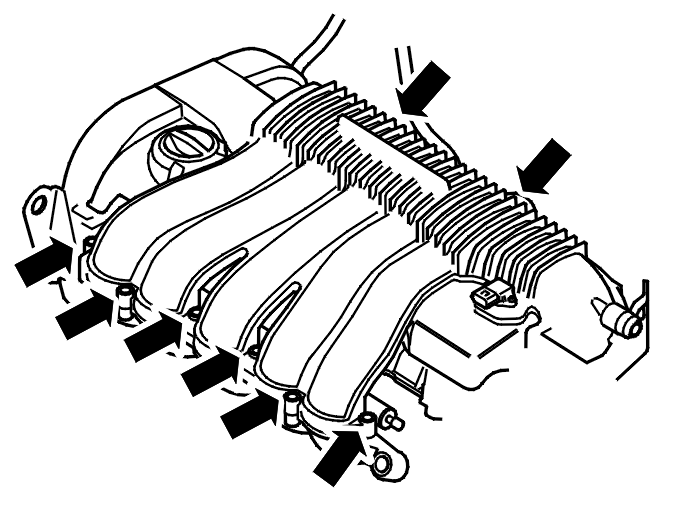

Fig 1: Identifying Upper Intake Manifold And Screws

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the guides for the lower section are in the correct position.

Install:

a new gasket for the upper section of the intake manifold
the upper intake manifold. Tighten the screws alternately. Tighten. See: TIGHTENING TORQUE . Tighten the hose clamp to the mass air flow (MAF) sensor. Connect the connector for the pressure sensor on the intake manifold
new tie strap for the cable harness.
