Collision Warning Control Module: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.

Remove the combined instrument panel, see COMBINED INSTRUMENT PANEL

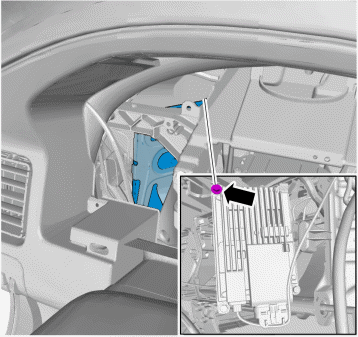

Fig 1: View of Collision Warning Control Module

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

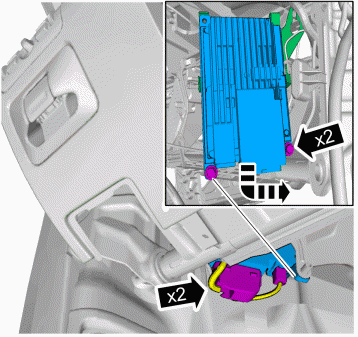

Fig 2: Removing Collision Warning Control Module

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the clips.

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M6

10 Nm
