Installing The Control Module

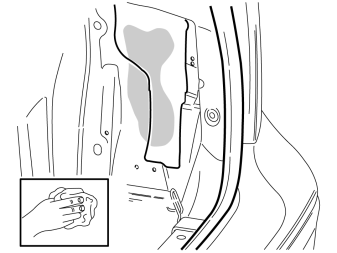

Fig 1: Cleaning Inside Of Rear Display Screen

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the marked surfaces on the inside of the rear display screen using isopropanol , and wipe dry.

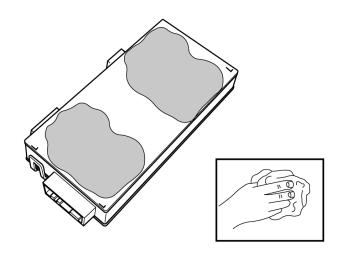

Fig 2: Cleaning Flat Section Of Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the marked surfaces on the flat section of the control module using isopropanol , and wipe dry.

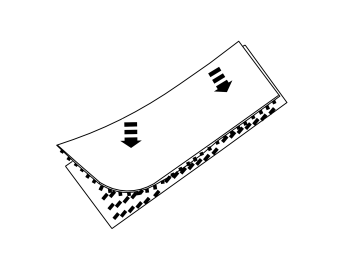

Fig 3: Identifying Velcro Pieces Pressed Together

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Identifying Velcro Strip

Courtesy of VOLVO CARS OF NORTH AMERICA.

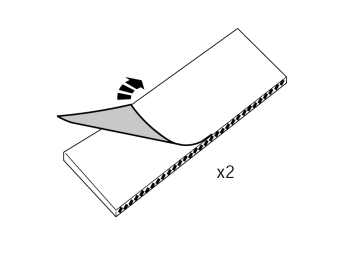

Fig 5: Identifying Protective Backing Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the protective backing tape from one side of the two Velcro fasteners which were pressed together.

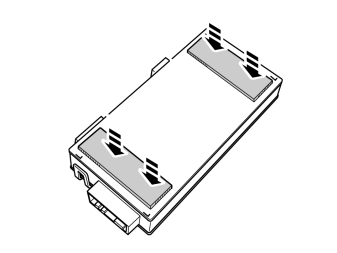

Fig 6: Identifying Velcro Fasteners

Courtesy of VOLVO CARS OF NORTH AMERICA.

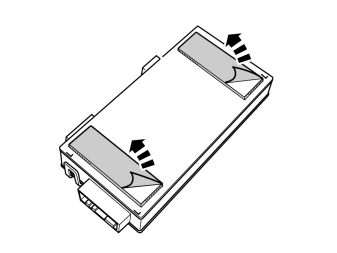

Fig 7: Identifying Protective Backing Tape

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Connecting Connector From Wiring To Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector from the wiring to the control module.
Press the control module on the rear display screen in such a way that the wiring connector is not located at the edge of the lower edge of the display screen. Also check that the module's rear edge is not too close to the body edge.

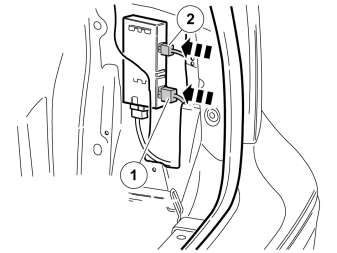

Fig 9: Identifying 2-Pin Gray Connector And 5-Pin Green Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Look for the pre-routed 2-pin gray connector (1) for the control module power supply, and the pre-routed 5-pin green connector (2) for signals to the control module. The connectors are clamped at the front edge of the large hole in the side of the bodywork.
NOTE: If the car is equipped with an Accessory Electronic Module (AEM) then the green connector is not clamped but hangs loose.
Connect the connectors to the control module.

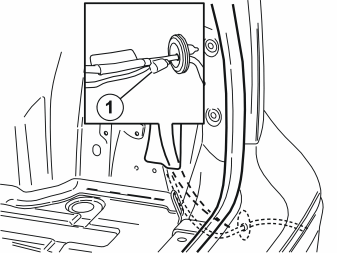

Fig 10: Identifying Green (GN) 5-Pin Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars from CH 45000-, with Parking Assistance Module (PAM)

Detach the green (GN) five pin connector (1) which is taped at the Parking Assistance Module (PAM) cable's rubber grommet.
Plug the green connector into the Trailer module wiring, (TRM).

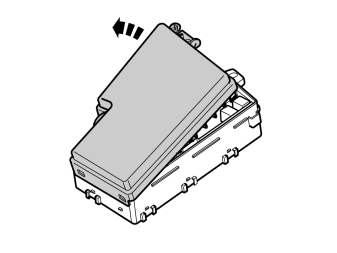

Fig 11: Pulling Up Catch On Cover On Fuse Box In Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to S40s manufactured after w720

Pull up the catch on the cover on the fuse box in the engine compartment. Pull up the cover and remove it.

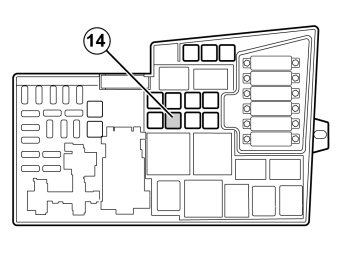

Fig 12: Identifying Terminal 14

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to S40s manufactured after w720

Reinstall the side panel. If the car has a 12 V socket, connect the connector to this.
Reinstall the rubber strip in the tailgate opening.
Reinstall the sill trim panel in the tailgate opening.
Reinstall the upper floor supports if applicable.
Reinstall the cargo compartment carpet.
Program the software.
