Removing Control Module Relay Box

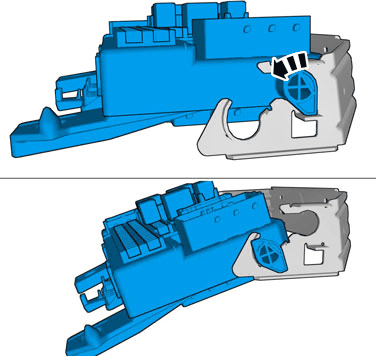

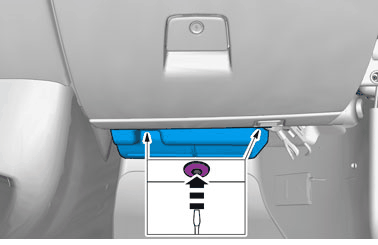

Fig 1: Identifying Control Module Relay Box & Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cutting Zip Ties

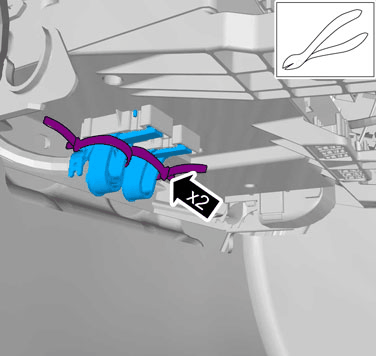

Fig 2: Identifying Zip Ties

Courtesy of VOLVO CARS OF NORTH AMERICA.

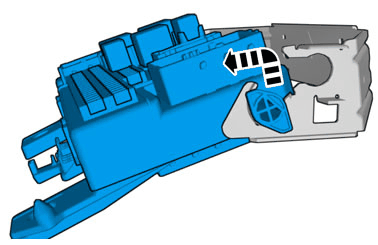

Fig 3: Identifying Control Module Relay Box Tilted Down

Courtesy of VOLVO CARS OF NORTH AMERICA.

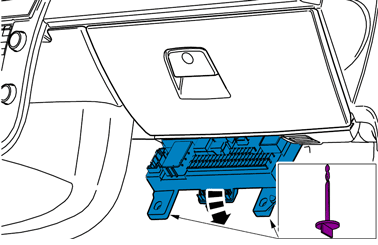

Fig 4: Identifying Control Module Relay Box Pulled Forward And Down

Courtesy of VOLVO CARS OF NORTH AMERICA.

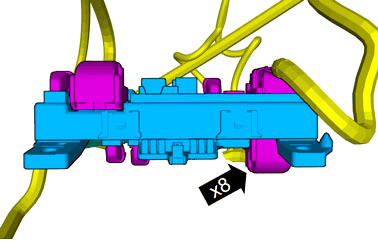

Fig 5: Identifying Control Module Relays And Cables

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Make sure that the component terminals are not bent or damaged.

Fig 6: Identifying Removal Of Control Module Relay Box

Courtesy of VOLVO CARS OF NORTH AMERICA.
