Diagnostic Trouble Code (DTC) Information DDM-0017: Notes

Condition

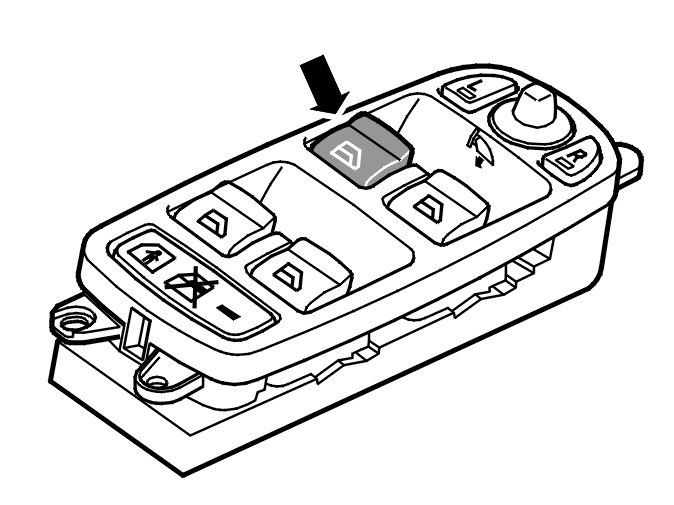

Fig 1: Identifying Driver Window Door Control Panel

Courtesy of VOLVO CARS CORPORATION

NOTE:

The illustration shows the control panel for the driver door in a left-hand drive car. The control panel of a right-hand drive car is the mirror image.

The diagnostic trouble code (DTC) is stored if the control module registers that the UP and DOWN signals for the power window mechanism in the driver's door are active simultaneously.

Substitute Value

None.

Possible Source

Damaged switch for the power window mechanism.

Fault symptom[s]

The driver's side power window mechanism does not operate.
