Preparatory Work

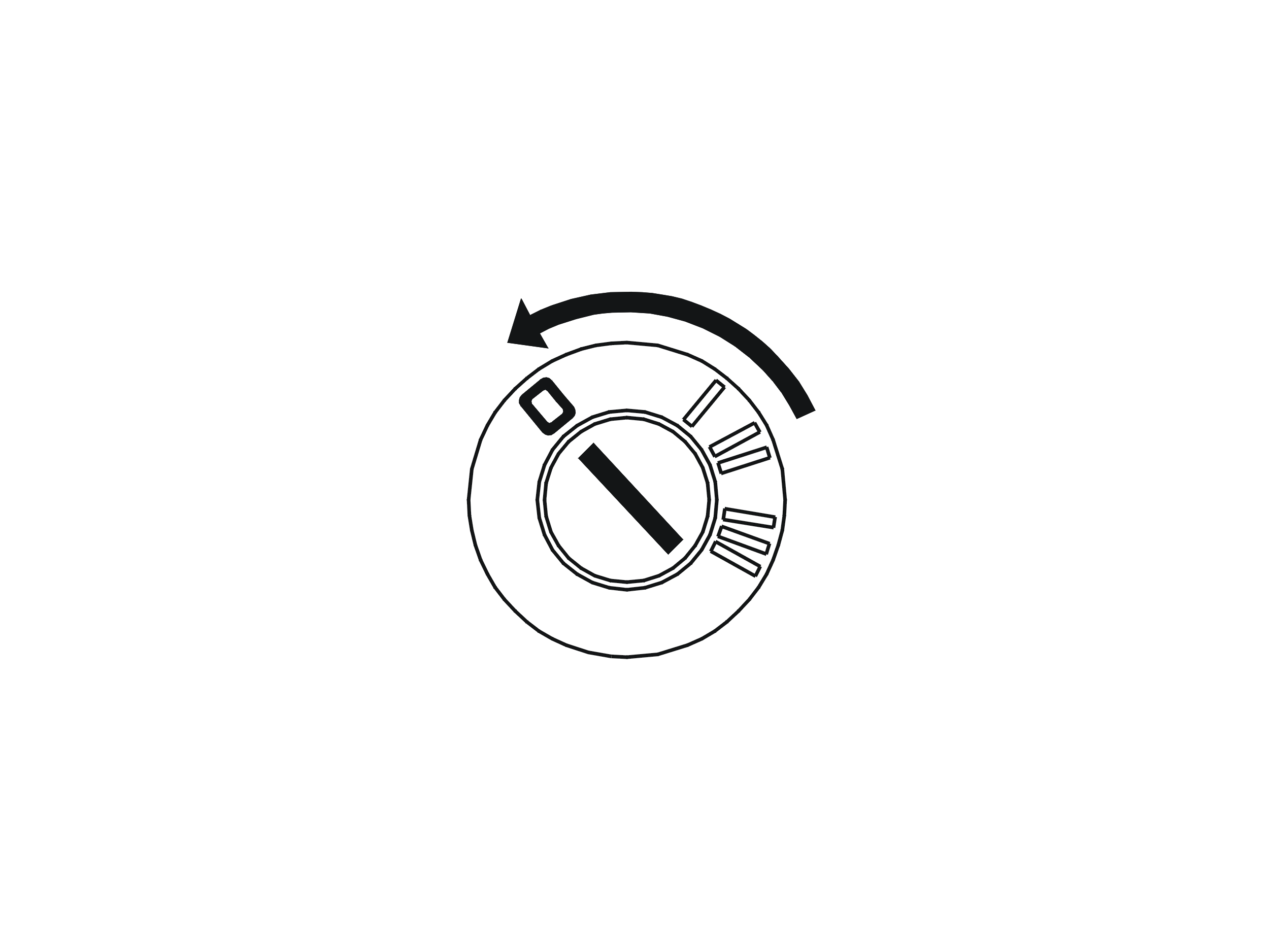

Fig 1: Identifying Ignition In OFF Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Fold out the rear right-hand side panel in the cargo compartment. See: SIDE PANEL LOADSPACE .

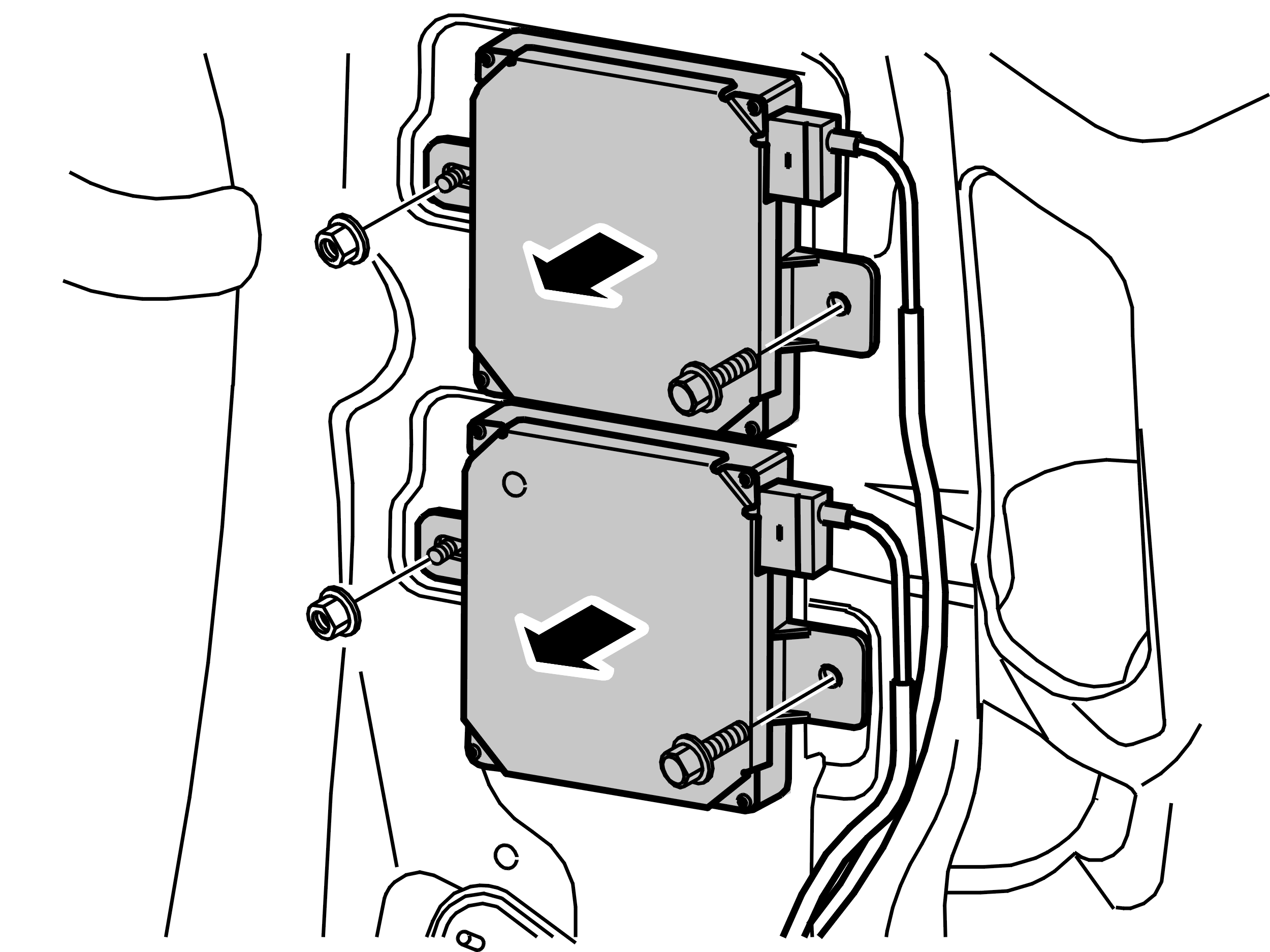

Fig 2: Locating Trailer Module (TRM) Behind AM/FM Tuner

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The trailer module (TRM) is located behind the AM/FM tuner module (AFM) (if applicable) and/or the traffic message channel module (TMC).

Remove:

Move the control modules to one side.
