Trailer Module (TRM): Removal

Removing The Trailer Module (TRM)

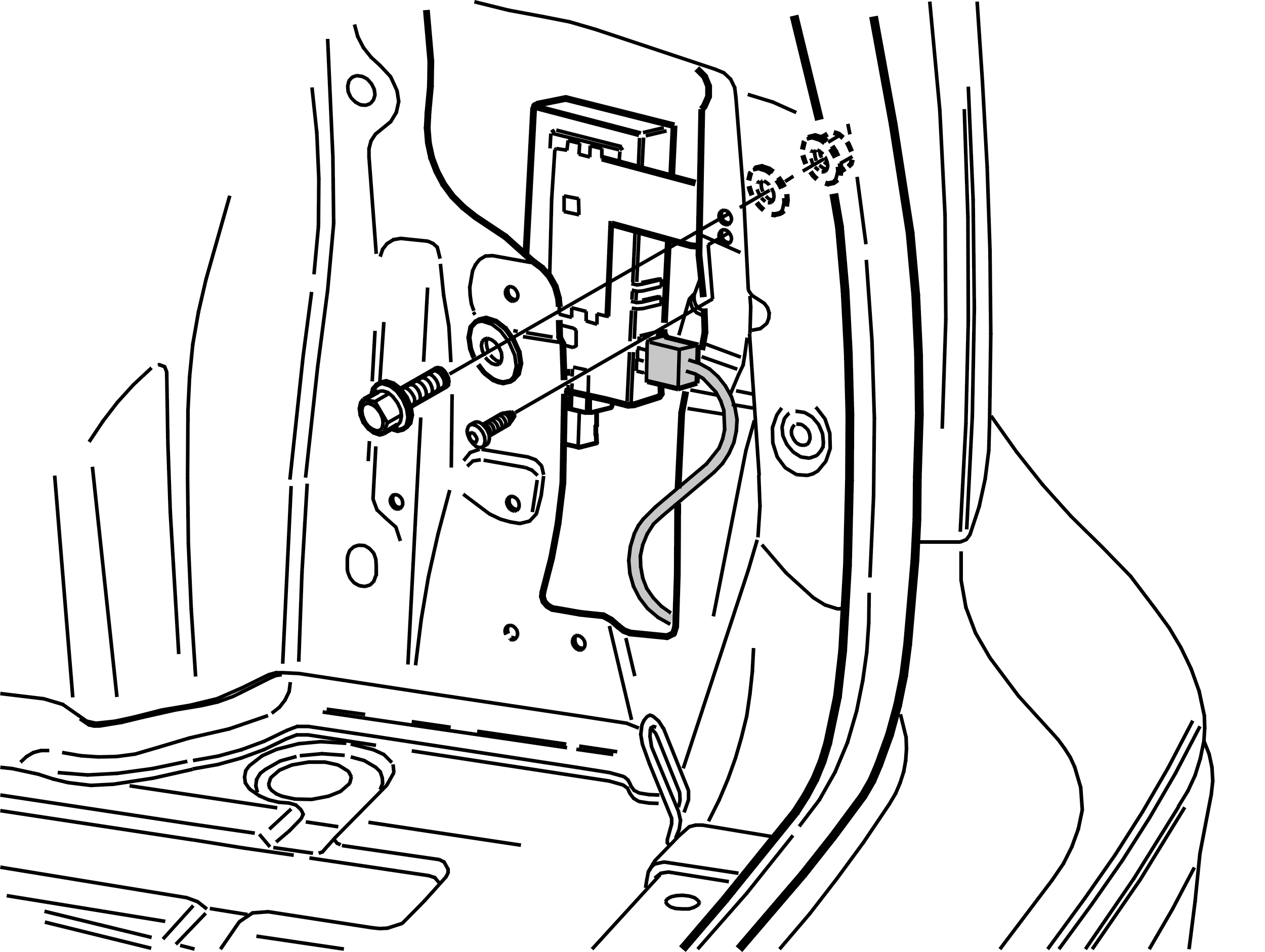

Fig 1: Identifying Control Module Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw
• the screw together with the nut
• the connector
• the control module.
