Signal Specification
General
| U= | DC voltage in volts (V) | UAC = | AC voltage in volts (V) |
| Ubat = | Battery voltage (V) | f = | Frequency in Hertz (Hz) |
| Ulow = | Voltage approximately 0 V | t = | Time in seconds |
| PWM = | Pulse width modulated signal as a % |

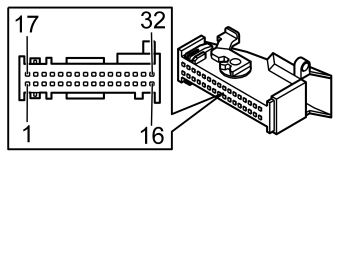

Connector C1
CONNECTOR C1
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Other |
| - | #C1-1 | Reserve | - | |
| - | #C1-2 | Reserve | - | |
| - | #C1-3 | Reserve | - | |
| - | #C1-4 | Reserve | - | |
| - | #C1-5 | Reserve | - | |
| - | #C1-6 | Reserve | - | |
| - | #C1-7 | Reserve | - | |
| - | #C1-8 | Reserve | - | |
| - | #C1-9 | Reserve | - | |
| - | #C1-10 | Reserve | - | |
| - | #C1-11 | Reserve | - | |
| - | #C1-12 | Reserve | - | |
| - | #C1-13 | Reserve | - | |
| - | #C1-14 | Reserve | - | |
| - | #C1-15 | Ground, power supply | U=Ulow | |
| - | #C1-16 | Ground, power supply | U=Ulow | |
| - | #C1-17 | Reserve | - | |
| - | #C1-18 | Reserve | - | |
| - | #C1-19 | Reserve | - | |
| - | #C1-20 | Reserve | - | |
| - | #C1-21 | Reserve | - | |
| - | #C1-22 | Reserve | - | |
| - | #C1-23 | Reserve | - | |
| - | #C1-24 | Reserve | - | |
| - | #C1-25 | Reserve | - | |
| - | #C1-26 | Reserve | - | |
| - | #C1-27 | Reserve | - | |
| - | #C1-28 | Reserve | - | |
| - | #C1-29 | Reserve | - | |
| - | #C1-30 | Reserve | - | |
| - | #C1-31 | Power supply, 30-supply | U = Ubat | |
| - | #C1-32 | Power supply, 30-supply | U = Ubat |
Connector C2
CONNECTOR C2
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Other |
| - | #C2-1 | MOST input signal | Optical input signal when the MOST network is activated | |
| - | #C2-2 | MOST output signal | Optical output signal when the MOST network is activated |
