Signal Specification, Infotainment Control Module (ICM)
General
All the values given below apply between the respective terminal (column 1) and power ground (#5). If this is not the case, it is indicated within brackets.
NOTE:
It is important to connect the breakout box and check the ground connections before starting to measure.
| U= | DC voltage in volts (V) | UAC = | AC voltage in volts (V) |
| Ubat = | Battery voltage (V) | f = | Frequency in Hertz (Hz) |
| Ulow = | Voltage approximately 0 V | t = | Time in seconds (s) |
| PWM = | Pulse-width modulation |

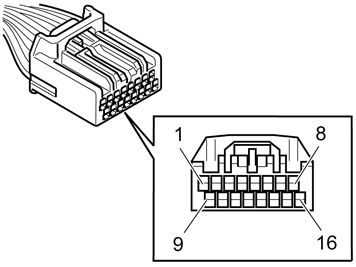

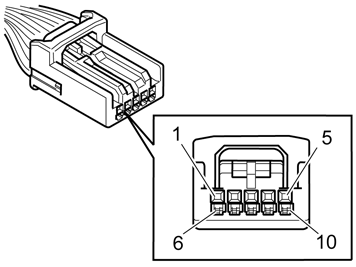

CONNECTOR C1
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Ignition off | Miscellaneous |
|---|---|---|---|---|---|
| #1 | #C1-1 | MS CAN L, #2 | U = 2.5 - 3.5 V | U = Ulow | |
| #2 | #C1-2 | MS CAN H, #2 | U = 2.5 - 3.5 V | U = Ulow | Analog input signal |
| #3 | #C1-3 | LIN SWS | U = 8 V | U = Ulow | |
| #4 | #C1-4 | - | - | - | Analog input signal |
| #5 | #C1-5 | Power ground | U = Ulow | U = Ulow | |
| #6 | #C1-6 | - | - | - | |
| #7 | #C1-7 | - | - | - | |
| #8 | #C1-8 | 30 supply | U = Ubat | U = Ubat | |
| #9 | #C1-9 | MS CAN L, #1 | U = 2.5 - 3.5 V | U = Ulow | |
| #10 | #C1-10 | MS CAN H, #1 | U = 2.5 - 3.5 V | U = Ulow | |
| #11 | #C1-11 | - | |||
| #12 | #C1-12 | - | |||
| #13 | #C1-13 | Ground, power supply | U = Ulow | U = Ulow | |
| #14 | #C1-14 | - | - | - | |
| #15 | #C1-15 | - | - | - | |
| #16 | #C1-16 | 30 supply | U = Ubat | U = Ubat |

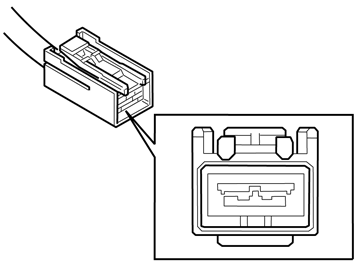

CONNECTOR C2
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
| - | #C2-1 | Input signal, MOST | - | Optical input signal |
| - | #C2-2 | Output signal, MOST | - | Optical output signal |
CONNECTOR C3 (BLUE)
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
| - | #C3-1 | Digital video signal (-) from Integrated Audio Module (IAM). | - | LVDS |
| - | #C3-2 | Digital video signal (+) from Integrated Audio Module (IAM) | - | LVDS |
| - | #C3-3 | Ground, power supply | U = Ulow | LVDS |
CONNECTOR C4 (GREEN)
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
| - | #C4-1 | CVBS, composite video signal from Television Module (TVM) or Rear seat entertainment module (RSE) | - | - |
| - | #C4-2 | Ground and signal screen | U = Ulow | - |
CONNECTOR C5 (BROWN)
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
| - | #C5-1 | CVBS, composite video signal from Parking Assistance Camera (PAC) | - | - |
| - | #C5-2 | Ground and signal screen | U = Ulow | - |
CONNECTOR C6
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
| - | #C6-1 | - | - | - |
| - | #C6-2 | CVBS + composite video signal, from front parking camera | - | - |
| - | #C6-3 | Ground and signal screen | U = Ulow | - |
| - | #C6-4 | CVBS -, composite video signal, from front parking aid camera | - | - |
| - | #C6-5 | - | - | - |
CONNECTOR C7 (ONLY FOR 5 INCH SCREENS)
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
| - | #C7-1 | Power supply | - | USB |
| - | #C7-2 | Data (-) | - | USB |
| - | #C7-3 | Data (+) | - | USB |
| - | #C7-4 | Ground, power supply | U = Ulow | USB |
| - | #C7-5 | Ground | - | USB |
