Installing Trailer Hitch Cable Harness

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

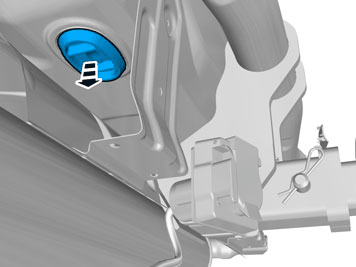

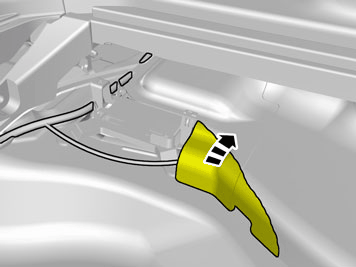

Remove the rubber bushing in the floor and put it aside, it is not to be used anymore.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The rubber bushing should be installed so that the cable points to the left on the inside.

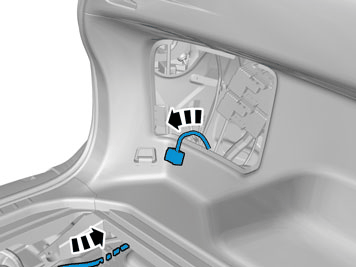

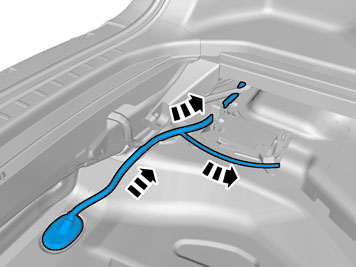

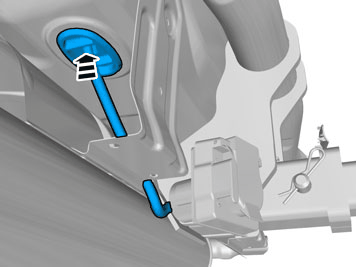

Insert the cable with the connector in the hole in the spare wheel well and install the rubber bushing.

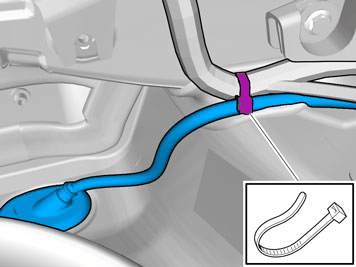

Adapt the length of the cable from the socket (outlet) and to the rubber bushing so that the cable is not too slack under the car.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

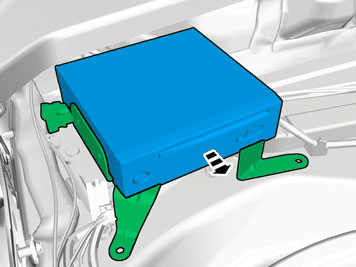

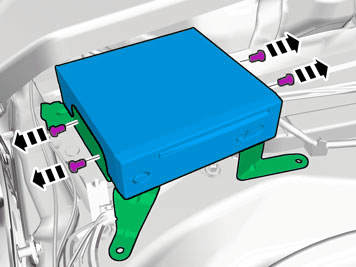

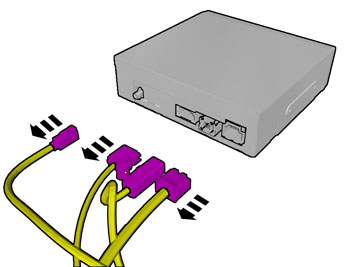

APPLIES TO VEHICLES WITH DVD-READER

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

APPLIES TO ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

APPLIES TO VEHICLES WITH CHASSIS NUMBER UP TO AND INCL. -175378

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

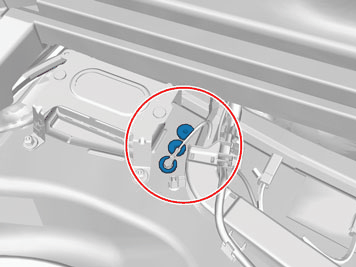

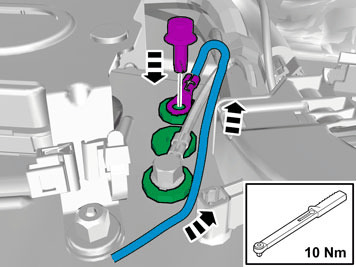

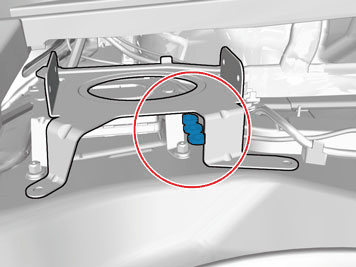

Connect to a free grounding point, in one of the three existing.

APPLIES TO VEHICLES WITH CHASSIS NUMBER UP TO AND INCL. FROM 175379-

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

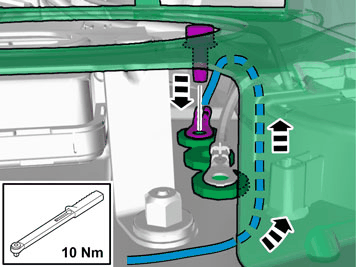

Connect to a free grounding point, in one of the three existing.

APPLIES TO ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

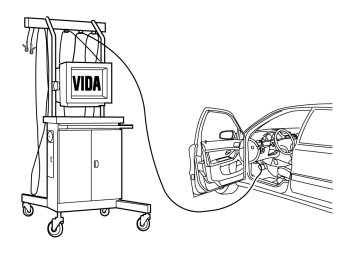

Download software (application) for the accessory's function according to the service information in VIDA.
See VIDA or the Volvo accessories catalog for software part number.
