Overheating Sensor

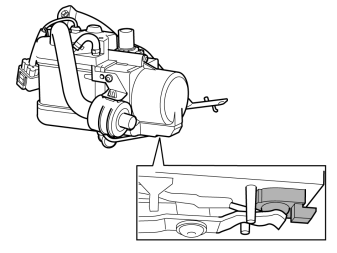

GENERAL
 Courtesy of VOLVO CARS CORPORATION
|
Characteristic
-Resistance is 46 - 250 Ω at +20 +/- 6°C.

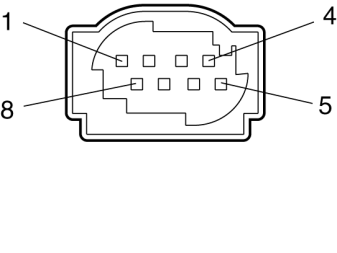

TERMINAL
 Courtesy of VOLVO CARS CORPORATION
|
| Connector terminal |
Control module terminal |
Signal type |
Other |
| #3 |
#3 in 8-pin internal connector |
Overheating sensor, signal |
- |
| #7 |
#7 in 8-pin internal connector |
Overheating sensor, ground |
- |
