Removal And Installation

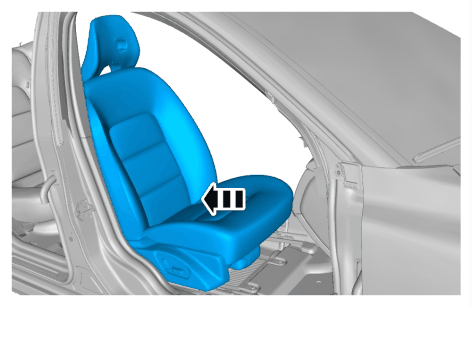

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M6, 10Nm

Order and download appropriate software.
