General Audio Player Module [2012-2017]: Removal

GLL166009Courtesy of VOLVO CARS CORPORATION

Remove center console, refer to: CENTER CONSOLE

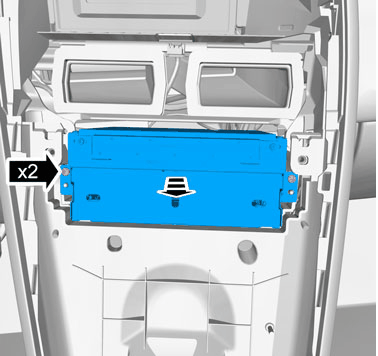

GLL177799Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that any disc is removed.

CAUTION:

Make sure to eject the discs one at a time in numerical order, starting with disc No 6 followed by disc No 5.

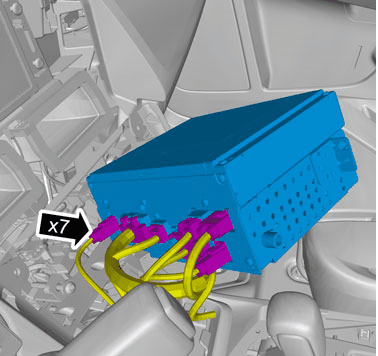

GLL177800Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.
