Universal Serial Bus (USB) Module [2009-2011]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL166009Courtesy of VOLVO CARS CORPORATION

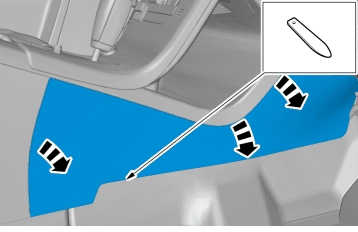

GLL165961Courtesy of VOLVO CARS CORPORATION

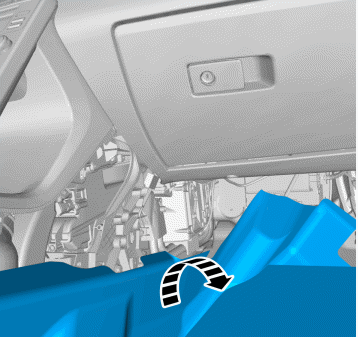

GLL160727Courtesy of VOLVO CARS CORPORATION

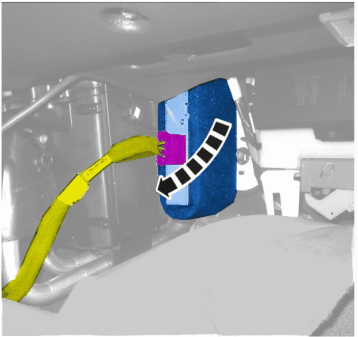

GLL165962Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

GLL165963Courtesy of VOLVO CARS CORPORATION
GLL160516Courtesy of VOLVO CARS CORPORATION

Use:  Sound absorber, 3539834
