Integrated Audio Module (IAM) [2009-2011]: Design: Loudspeakers

Courtesy of VOLVO CARS CORPORATION

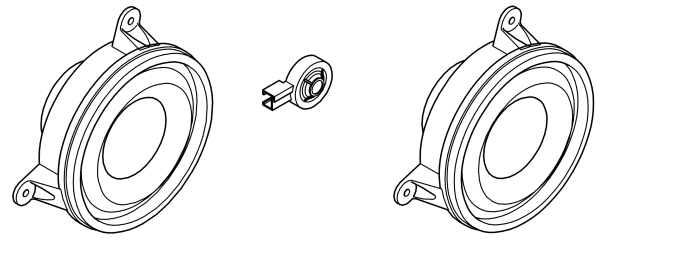

The integrated audio module (IAM) for Performance has four speakers directly connected to the control module:

• one pair of front loudspeakers
• one pair of rear loudspeakers.

Each speaker has an element for the entire frequency range. A tweeter for the front and rear speakers is available in certain markets.

Impedance for each speaker is 4 Ω.

For versions without an amplifier, the loudspeakers are connected to the Audio module (AUD).

For more information, see appropriate Design and Function information for the Audio Module (AUD).
