Television Module (TVM) [2011-2017]: Function: Television

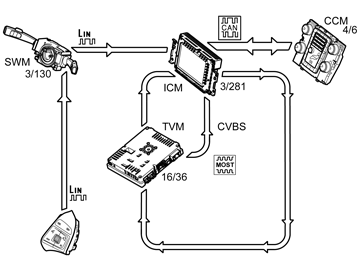

Television Module (TVM) (16/36) does not have its own keypad. For menu handling Television Module (TVM) uses the keypad on Climate control module (CCM) (4/6), the keypad on the steering wheel or remote control infotainment.
When menu handling via the keypad on Climate control module (CCM) the signals are sent to Infotainment control module (ICM) (3/281) via the CAN-net. Then Infotainment control module (ICM) sends the signals on to Television Module (TVM) via the MOST-net.
When menu handling via the steering wheel buttons the signals are sent from Steering wheel module (SWM) (3/130) to Infotainment control module (ICM) via LIN-communication. Infotainment control module (ICM) then sends the signals on to Television Module (TVM) via the MOST-net.
Menu management is displayed to the user in the display on the Infotainment Control Module (ICM) and in some cases also on the display for the Rear seat entertainment module (RSE), if applicable.
Television Module (TVM) (16/60) sends television picture signal directly to Infotainment control module (ICM) (3/281) via composite video signal (CVBS).
