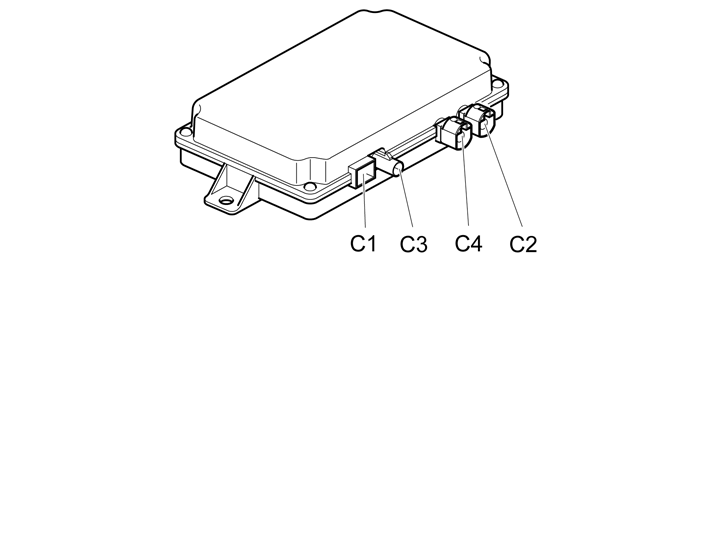

Signal Specification, Parking Assistance Camera (PAC)

GENERAL

U=	DC voltage in volts (V)	U_AC =	AC voltage in volts (V)
U_bat =	Battery voltage (V)	f =	Frequency in Hertz (Hz)
U_low =	Voltage approximately 0 V	t =	Time in seconds
PWM =	Pulse width modulated signal in %	% duty =	Duty cycle (pulse ratio) in percent (%)

Courtesy of VOLVO CARS CORPORATION

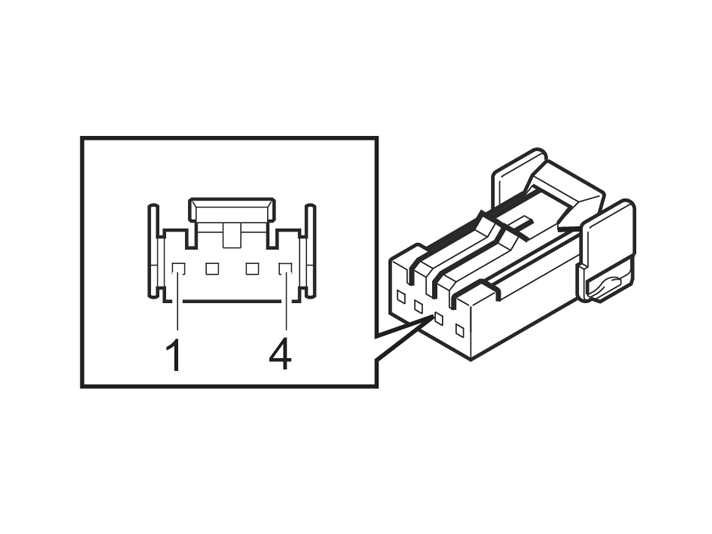

SIGNAL TABLE, CONNECTOR C1

Courtesy of VOLVO CARS CORPORATION

It is not possible to measure this connection on the control module since electric power will be cut off the control module if the connector is unplugged. Try instead to measure on the connector.

Terminal	Signal type	Ignition on	Miscellaneous
C1-1	Power ground	0 V
C1-2	Communication CAN_H low speed network	0-5 V
C1-3	Communication CAN L low speed network	0-5 V
C1-4	Power supply	7-18 V

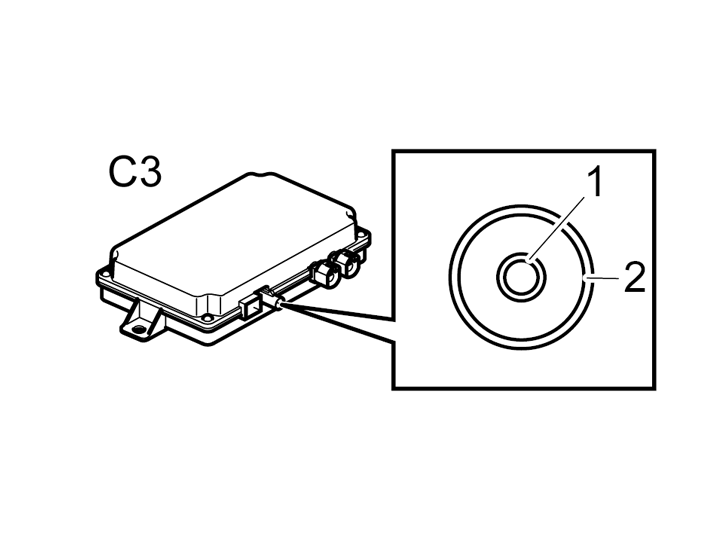

SIGNAL TABLE, CONNECTOR C3

Courtesy of VOLVO CARS CORPORATION

Terminal	Signal type	Ignition on	Miscellaneous
C3-1	Video signal, display screen	0-1 V
C3-S	Cable protective ground	0 V	The video cable has protective grounding to counteract interference.

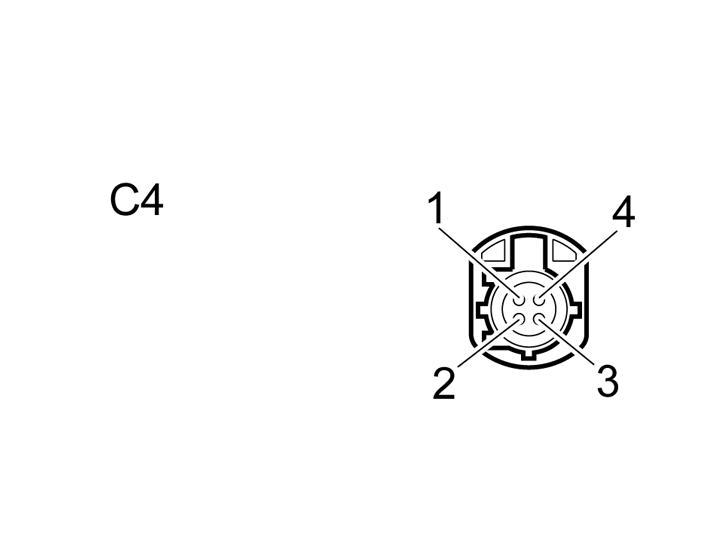

SIGNAL TABLE, CONNECTOR C4 (ONLY JAPAN)

Courtesy of VOLVO CARS CORPORATION

Terminal	Signal type	Ignition on	Miscellaneous
C4-1	Power supply, side-view camera	12 V	Measuring current on this connection causes short-circuiting of the ECU.
C4-2	Video signal -	0-2 V
C4-3	Grounding, side-view camera	0 V
C4-4	Video signal +	0-2 V
C4-S	Cable protective ground		The video cable has protective grounding to counteract interference. The side-view camera is not grounded via the cable protective ground. The side-view camera is grounded separately via C3-3.

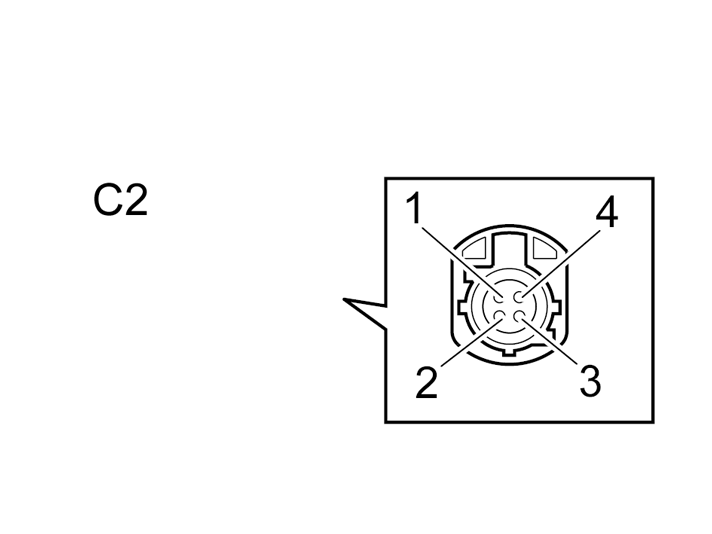

SIGNAL TABLE, CONNECTOR C2

Courtesy of VOLVO CARS CORPORATION

Terminal	Signal type	Ignition on	Miscellaneous
C2-1	Power supply, rear camera	12 V
C2-2	LVDS-	0-500 mV
C2-3	LIN-communication, rear camera	0-12 V
C2-4	LVDS+	0-500 mV
C2-S	Cable protective ground	0 V	The video cable has protective grounding to counteract interference. The rear camera is also grounded via the cable protective ground.
