Trailer Module (TRM) [2015-2016, B5254T12]: Removal

GLL166009Courtesy of VOLVO CARS CORPORATION

Remove left side, side panel cargo space. Refer to: SIDE PANEL LOADSPACE

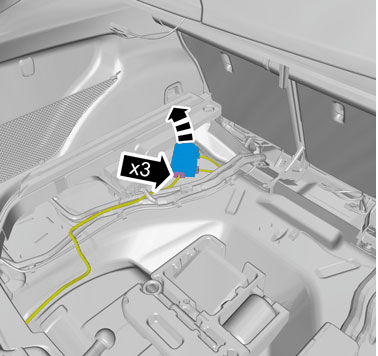

GLL176196Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

Follow the instructions regarding components with double-sided adhesive tape, refer to: COMPONENTS WITH DOUBLE-SIDED TAPE

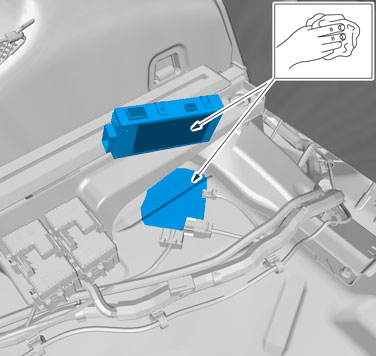

GLL176197Courtesy of VOLVO CARS CORPORATION
GLL173118Courtesy of VOLVO CARS CORPORATION
GLL166919Courtesy of VOLVO CARS CORPORATION
GLL166918Courtesy of VOLVO CARS CORPORATION

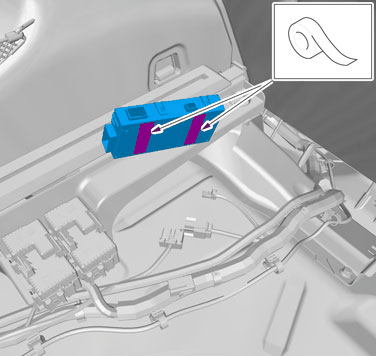

GLL176198Courtesy of VOLVO CARS CORPORATION
