Connector, Anti-Lock Braking System Module (Abs) [2009-2017]: Notes

SPECIAL TOOLS

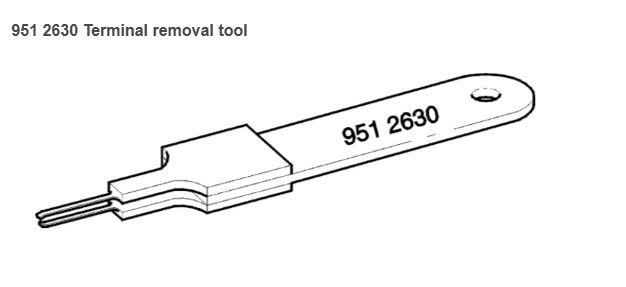

G00566996Courtesy of VOLVO CARS CORPORATION
951 2630 Terminal removal tool
Tool number:  951 2630-6
Tool description:  Terminal removal tool (color code: Black)
Tool boards:  39

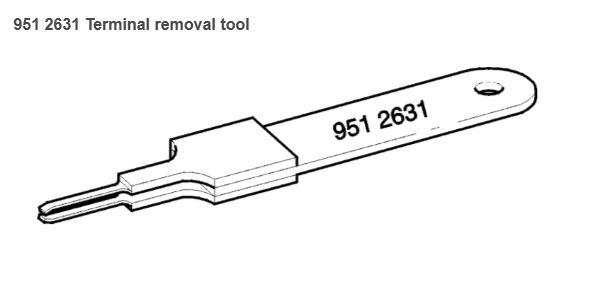

G00566995Courtesy of VOLVO CARS CORPORATION
951 2631 Terminal removal tool
Tool number:  951 2631-4
Tool description:  Terminal removal tool (Color code: Brown)
Tool boards:  39
NOTE:

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.
