Driver Information Module (Dim) [2014-2017]: Function: Tachometer

Courtesy of VOLVO CARS CORPORATION

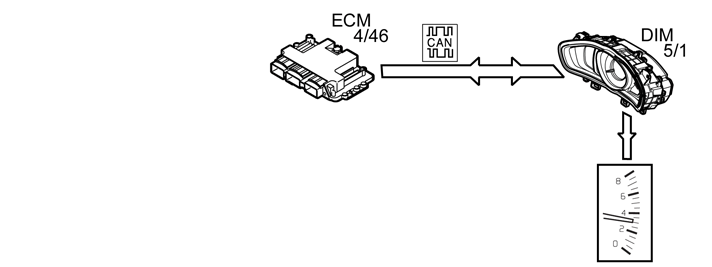

A flywheel sensor is connected to the engine control module (ECM) (4/46). The engine control module (ECM) sends the engine speed signal via CAN to the driver information module (DIM) (5/1).
