Distribution Valve (8/191)

GENERAL

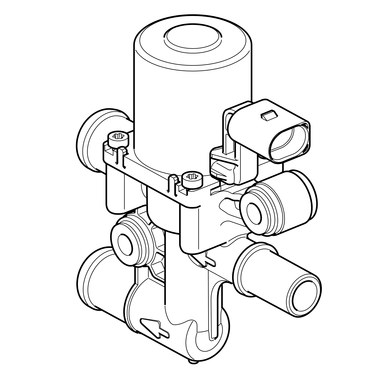

GLL1018235Courtesy of VOLVO CARS CORPORATION

TERMINAL

GLL155144Courtesy of VOLVO CARS CORPORATION
Connector terminal Control module terminal Signal type Other
#1 #1 in 8-pin internal connector Distribution valve, control signal -
#5 #5 in 8-pin internal connector Distribution valve, ground -
