Transmission Control Module (TCM) [2009-2010, B6304T2, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

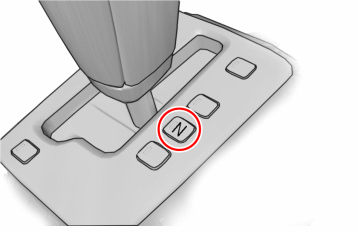

GLL159721Courtesy of VOLVO CARS CORPORATION

Perform battery disconnecting and connecting. Refer to: BATTERY DISCONNECTING AND CONNECTING

Remove auxiliary drive component bracket, refer to: AUXILIARY DRIVE COMPONENT BRACKET

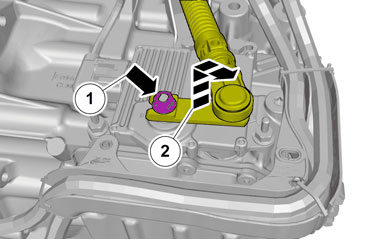

GLL173715Courtesy of VOLVO CARS CORPORATION

Torque:  Gear selector mechanism (nut), 16Nm

GLL154765Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

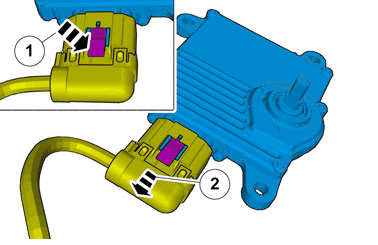

GLL173717Courtesy of VOLVO CARS CORPORATION
