Installing The Camshaft Position (CMP) Sensor

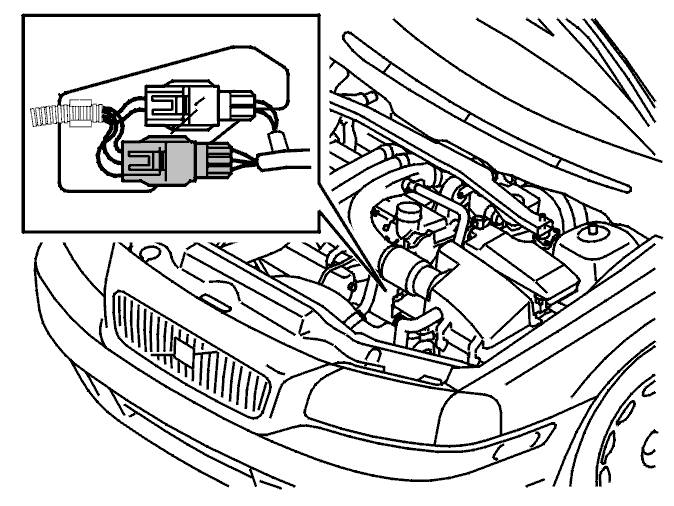

Fig 1: Camshaft Position Sensor Connector

Courtesy of VOLVO CARS CORPORATION

Install

• new sensor  . Tighten to 10 Nm
• the camshaft position (CMP) sensor housing. Tighten to 17 Nm  .Applies only to B6xx4T
• the cable from the clamp on the cylinder block
• the connector on the bracket
• the hose bracket on the cylinder block.

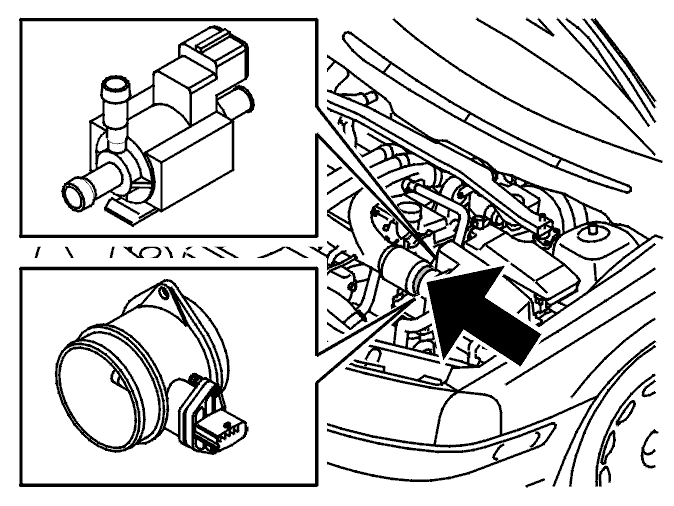

Fig 2: Identifying Clamp On Hose Between Mass Air Flow Sensor And Pipe To Turbocharger

Courtesy of VOLVO CARS CORPORATION

Applies only to B6xx4T

• the crankcase ventilation pipe and the heater hose. Tighten the hose clamps
• air cleaner (ACL) housing
• the turbocharger (TC) control valve connector
• the turbocharger (TC) control valve from the air cleaner (ACL) housing
• the hose between the air cleaner (ACL) housing and turbocharger (TC). Tighten the hose clamp
• the intake manifold between the front cover plate and the air cleaner (ACL) housing.

Install the preheating pipe on the air cleaner (ACL):Applies only to B6xx4S engines  .
