Checking The Power Supply And Ground Terminal

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS CORPORATION

• Ignition off.
  NOTE:

  Steering Column Lock Module (SCL) supplied with power one to three times every 0.35 seconds during locking and unlocking.

  Check the cable between central electronic module (CEM) terminal #B10 (#10) and the steering column lock module (SCL) terminal #A2. Check for an open-circuit.

  Check the signal cable between central electronic module (CEM) terminals #B17 (#17) and steering column lock module (SCL) terminal #A4. Check for an open-circuit. Check for a short-circuit to ground. Check for a short-circuit to supply voltage.

  Check the cable between steering column lock module (SCL) terminal #A3 and ground. Check for an open-circuit. Also check the ground terminal for oxidation.

  Remedy the cables as necessary.

  Other information

  • see CONNECTING THE BREAKOUT BOX (2007)
  • see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM)
  • see CONTROL MODULE RELAY BOX PASSENGER COMPARTMENT
  • see CHECKING WIRING AND TERMINALS

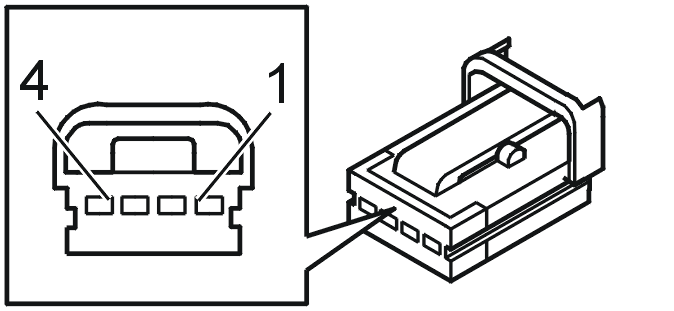

  Fig 2: Identifying 4-Bit Connector

  Courtesy of VOLVO CARS CORPORATION
  Fig 3: Identifying Steering Column Lock Module

  Courtesy of VOLVO CARS CORPORATION

Were any defects found?

• YES

  Refer to VERIFICATION

• NO

  Refer to TEST WITH ANOTHER CONTROL MODULE
