Diagnostic Trouble Code (DTC) Information KVM-0030
Condition
When one of the outer lock buttons on the side doors is activated, a counter is started. The counter stops and is reset when the button is released.
The diagnostic trouble code (DTC) is stored if the keyless vehicle module (KVM) registers that the outer lock button on the left-hand front door has been activated for more than two minutes.
Substitute Value
- None.
Possible Source

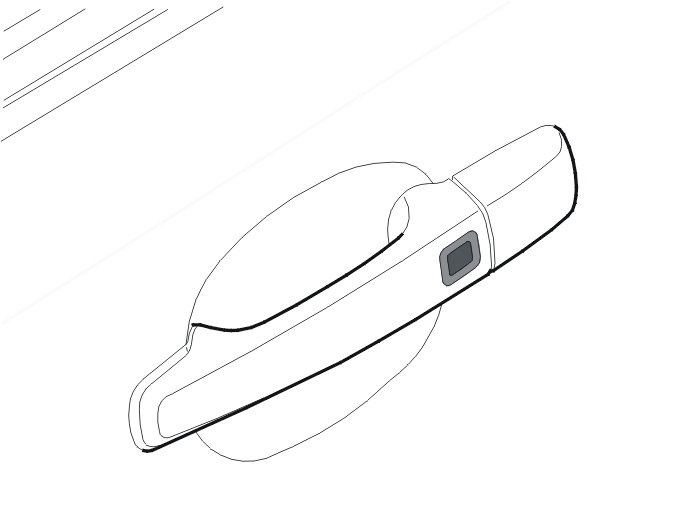

- Outer lock button left front faulty
- Outer lock button left front pressed in for longer than two minutes
- Short-circuit to ground in the signal cable.
Fault symptom[s]
- Locking not possible with outer lock button.
