Checking The Power Supply And Ground Terminal

Fig 1: Identifying Ignition In Off Position

Courtesy of VOLVO CARS CORPORATION

• Ignition off.

  Check the cable between central electronic module (CEM) terminal #A41 (#41) and remote control receiver (RRX) terminal #A1. Check for an open-circuit.

  Check the signal cable between central electronic module (CEM) terminals #A35 (#35) and remote control receiver (RRX) terminal #A5. Check for an open-circuit. Check for a short-circuit to ground. Check for a short-circuit to supply voltage

  Check the cable between remote control receiver (RRX) terminal #A3 and ground. Check for an open-circuit. Also check the ground terminal for oxidation.

  Remedy the cables as necessary.

  Other information

  • see CONNECTING THE BREAKOUT BOX
  • see SIGNAL DESCRIPTION CENTRAL ELECTRONIC MODULE (CEM)
  • see LOCKING SYSTEM RECEIVER (2008-2012)
  • see CHECKING WIRING AND TERMINALS

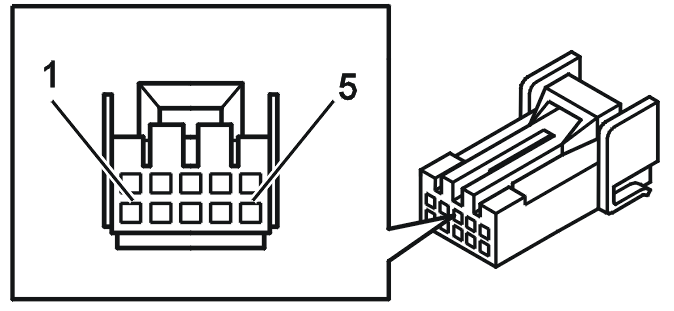

  Fig 2: Identifying 10-Bit Connector

  Courtesy of VOLVO CARS CORPORATION
  Fig 3: Identifying Remote Control Receiver (RRX)

  Courtesy of VOLVO CARS CORPORATION

Was a fault detected?

• YES

  Refer to VERIFICATION

• NO

  Refer to CHECKING COMMUNICATION
