Workshop System And Guidelines 2015 Version: 1.0 (SMB00-331)
Publication date: 2014-02-11Reference number: SMB00-331
WORKSHOP SYSTEM AND GUIDELINES 2015 VERSION: 1.0
TECHNICAL SERVICE BULLETIN
| VOLVO: | All Models |
| GROUP: | 00 |
| RELATED REF. NUMBER(S): | SMB00-331 |
SERVICE INFORMATION
This document describes the technical specifications and standards that need to be incorporated in the dealership network and IT infrastructure for running VIDA, TIE and other workshop applications coming in 2015.
During 2015, all work bays and parking spaces used by customers visiting the workshops, shall be covered by a Wireless Local Area Network (WLAN). This is in order to fully support the reintroduction of the new XC90 and other SPA vehicles to come. SPA-based vehicles will support diagnostics over Ethernet and wireless LAN. This delivers a productivity advantage from faster communication and ease of connectivity. Ultimately, this will improve the Workshop experience.
This document is prepared as a technical guide to assist authorized Volvo dealers in building wired and wireless infrastructure for their workshops.
The document will be used intensively during the roll-out of VIDA for 2015.
The new VIDA application will support the new SPA vehicle models as well as all the current available vehicle models. Soon after, the current VIDA application, as we know it, will cease to exist.
It is strongly recommended that this document be reviewed along with a qualified IT consultant in order to gain an understanding of the costs and scope of the project.
1 INTRODUCTION
This document describes the technical specifications and standards that need to be incorporated in the dealership network and IT infrastructure for running VIDA, TIE and other workshop applications in 2015.
During 2015, all work bays and parking spaces used by customers visiting the workshops, shall be covered by WLAN. This document is prepared as a technical guide to assist authorized Volvo Cars dealers, importers, harbors and national sales companies to build wired and wireless infrastructure for workshops and other VIDA users. The document will be used intensively during the roll-out of VIDA for 2015.
The new VIDA application, to be delivered in 2015, will meet the requirement of the new SPA vehicle model as well as for current available vehicle models. Eventually the current version of VIDA will cease to exist.
2 VIDA IN 2015
SPA-based vehicles set to launch in 2015 will support diagnostics over Ethernet or wireless LAN. This delivers a productivity advantage from faster communication and ease of connectivity. An enhanced version of VIDA will be launched in tandem and will let the workshops work with SPA vehicles and other existing models from Volvo Cars.

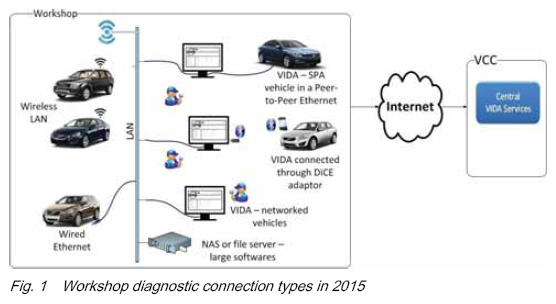

Below diagram depicts the vehicle connectivity scenarios at the workshop in 2015.
There are three different ways of connecting a SPA vehicle to VIDA:
- Wireless LAN connection between the vehicle and the workshop network (automatically), where the vehicle is accessible from any VIDA workstation in the workshop
- Wired Ethernet , using an Ethernet cable to connect the vehicle to a LAN infrastructure, from where the vehicle is accessible from any VIDA workstation in the workshop.
- Point-to-Point , using an Ethernet cable between the computer running the VIDA application and the vehicle.
2.1 Timeline
When the first release of the new VIDA application, launched in 2015 is delivered, the following mandatory components must be fulfilled in order to diagnose SPA vehicles:
- VIDA required components.
- Point-to-Point connectivity components.
To reap the full benefit of the wireless capabilities of the SPA vehicle, the following infrastructure is required:
- Wireless LAN infrastructure setup.
- Network configuration.
| Mandatory requirements for VI DA (Feb 2015) | Recommended requirements for 2015-06-30 |
|---|---|
| VIDA requirements, see chapter 3.1 VIDA requirements on . | Wireless LAN requirements, see chapter 3.2 Wireless LAN requirements on . |
| Point-to-Point connection requirements, see chapter 3.3 Point-to-Point connectivity requirements on . |
3 REQUIREMENT DETAILS
3.1 VIDA requirements
The following are the mandatory infrastructure components for VIDA:
- Workstation with Windows 7 Pro/Enterprise or Windows 8.1 Pro.
- Public Internet must be facilitated at all workshops (see Volvo Cars Dealer Standards Document for Internet bandwidth requirement details). The Internet connection is used for the communication between the VIDA workstations and the VIDA central servers.
- Network storage of 500 GB is needed per customer organization (Partner ID) to locally cache VIDA data. This should be made available either as a NAS drive or a shared folder - accessible to all VIDA workstations in the workshop.
- Mobile Internet - USB Internet data card or smartphone Internet source is needed for using VIDA on board during test-drives.
3.1.1 Recommended specifications for VIDA workstation
It is the recommendation of Volvo Cars Customer Service that computer equipment bought for VIDA, should be possible to upgrade. If it is necessary to increase computer performance, it should be possible to increase RAM and replace hard drives easily. Furthermore, purchasing more memory will result in better performance since the use of virtual memory is minimised.
VIDA will be delivered as a desktop application replacing existing VIDA on Web as well as VIDA All-in-one. Users of VIDA on Web and VIDA All-in-one will need to execute an installer package that installs the necessary software components in their workstations.
For using the full version of VIDA, including diagnostics and software download, the workstation requirements are as presented in the table below.
| Item | Recommended specification for VIDA used for diagnostics and SWDL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Processor | Core i3 and above(1) | ||||||||||
| Memory | 4 GB or above | ||||||||||
| Local free disc space | 10 GB(2) | ||||||||||
| Connections | 3 x USB 2.0 or higher (One for DICE/Ethernet, one for SWDL special tool and one for mobile Internet in case of laptop)(3) | ||||||||||
| Operating System | Windows 7 Professional/Enterprise or Windows 8.1 Professional(4) | ||||||||||
| File system | NTFS | ||||||||||
| Display resolution | 1280x1024(5) | ||||||||||
|
|||||||||||
If diagnostics and software download shall not be used, the workstation requirements are as presented in the table below.
| Item | Recommended specification for VIDA used for parts and service Information access only | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Processor | > Pentium IV, 1.3 GHz(1) | ||||||||
| Memory | 2 GB or above | ||||||||
| Local free disc space | 4 GB(2) | ||||||||
| Operating System | Windows 7 Professional/Enterprise or Windows 8.1 Professional(3) | ||||||||
| File system | NTFS | ||||||||
| Display resolution | 1280 x 1024(4) | ||||||||
3 Additional USBs may be needed for other equipment, such as mouse and keyboard.
|
|||||||||
3.2 Wireless LAN requirements
3.2.1 Introduction to WLAN
A WLAN typically extends an existing wired local area network to a wireless network. WLANs are built by attaching a device called access point (AP) to the edge of the wired network which provides wireless medium for wireless endpoints. SPA vehicles will establish a communication channel with the access point, using an in-built wireless network adapter. When the vehicle initiates the wireless connection, it must find an access point that is reachable and able to approve its membership.
3.2.2 Components required
3.2.2.1 Mandatory components
While forming a wireless and wired network for vehicles, these components are to be considered as mandatory for the setup:
- Access point(s).
- Wireless LAN controller(s).
- RADIUS server.
- DHCP server.
Wireless access points are specially configured nodes on WLANs that act as a central transmitter and receiver of WLAN radio signals. Access points are dedicated hardware devices featuring a built-in network adapter, antenna, radio transmitter and support wireless communication IEEE 802.11x standards.
A Service Set Identifier (SSID) is a sequence of characters that uniquely names a WLAN. The SSID differentiates one WLAN from another, so all access points and all devices attempting to connect to a specific WLAN must use the same SSID to enable effective roaming. As part of the association process, the vehicle will start searching for a new network with a predefined prefix string in the SSID at the dealership and if it matches, it will try to connect WLAN.
The vehicle negotiates its membership and security measures in the following sequence:
- Use a predefined prefix string that matches the AP SSID.
- Authenticate with the AP.
- Use the packet encryption method.
- Use the packet authentication method.
- Build an association with the AP.
Wireless LAN Controller (WLC) is usually deployed to provide better flexibility to configure wireless policy administration and security settings through centralized provisioning and management. An AP registers itself with a WLC and tunnels all of the management and data packets to the WLC, which then switch the packets between the vehicle and the wired portion of the network. All of the configurations are done on the WLC and AP downloads the entire configuration from WLC and acts as a wireless interface to the vehicle.
It is highly recommended to use a WLC if the total number of access points needed is greater than 5 for better manageability as well as enabling better roaming facility in the coverage area for the vehicles.
Remote Authentication Dial in User Service (RADIUS) should be used as an authentication server (AS) for the vehicles to authenticate for WLAN. It connects to a database of allowed users on the network and is a central part in IEEE Standard 802.1X-2004 authentication. EAP-TLS method must be used for authentication purpose to connect WLAN. Access points or WLC act as authenticator to relay identity response from vehicle to AS. The WLAN authentication process involves mutual authentication between valid network client (SPA vehicle) and the AS through digital certificates. The AS should be one or more centrally accessed servers that are able to provide authentication services to all connected workshops.
A DHCP server needs to be configured in the newly formed WLAN in order to dynamically assign IP addresses to the connected vehicles from a leased pool.
3.2.2.2 Reusable components in existing infrastructure
The below components could be reused, if these are already existing:
- Firewall
- Routers
- Existing network connectivity between multiple workshops
- Layer 2 and layer 3 switches
- Proxy service for Internet
- Internet bandwidth
- Access Points
- Wireless LAN Controller
- RADIUS server
- DHCP server
An existing firewall can be configured with an additional wireless zone in order to secure the wireless clients (SPA vehicles). It is recommended to secure VIDA workstations and other servers like RADIUS, DHCP etc.
The existing layer 2 and layer 3 switches could be used for the mentioned VLAN creation.
Existing routers, layer 3 switches can be used for routing purpose.
An existing proxy service can be used for Internet communication.
The existing public Internet can be used for Internet communication.
Wireless access points, wireless LAN controller, RADIUS server and DHCP server can be reused if they comply with the specifications mentioned in this document.
3.3 Point-to-Point connectivity requirements
SPA vehicles can be connected directly to a VIDA workstation with a standard Ethernet cable using network connectors for a Point-to-Point connection for diagnostics and software download. The following are the mandatory components required:
- Additional Ethernet network adapters are required for each VIDA workstation to enable direct connectivity to the vehicle. It can be a PCI network card or a USB Ethernet adapter.
- OBD II connector with RJ45-OBD II adapter.
- Ethernet cable type CATS, CAT5e or CAT6 must be used for connectivity.
The Point-to-Point option will always be possible, even without any Wi-Fi components since it only requires an Ethernet cable. The other two connectivity mechanisms (wireless LAN connection and wired Ethernet) require additional equipment and configuration at the workshop.
4 ELECTRONIC WIRING DIAGRAM
Electronic Wiring Diagrams (EWDs) are accessible through VIDA.
It is also possible to run EWD as a standalone application. Java Runtime Environment and Adobe Reader have to be installed separately on the computer. When installing EWD on a computer which does not run VIDA, a pop-up will inform the user where to find the Java program and Adobe Reader on the Internet.
5 TIE
TIE is used to report errors/discrepancies and to distribute information. To access TIE, Microsoft Internet Explorer 10 is required.
6 VIDA MENU PRICING
VIDA Menu Pricing is a tool that can be used to plan work in the workshop. It combines Volvo Standard Times (VST), parts packages and price information into one complete job. The VIDA Menu Pricing information is used as part of the content in the work list creation in VIDA.
Starting 2015, VIDA Menu Pricing will be integrated with VIDA and there is no separate system requirement for VIDA Menu Pricing.
7 CONFIGURATION SPECIFICATIONS
7.1 Mandatory specifications for wireless LAN
The following factors contribute to the mandatory change specifications for wireless LAN.
7.1.1 Wireless configurations
IEEE network standard
The access points and wireless LAN controllers shall operate on IEEE standard 802.11 b/g/n mixed mode, for the wireless connectivity of vehicles at workshop, considering the antenna specification of the vehicle which operates on 802.11a/b/g/n for internal antenna and 802.11b/g/n for external antenna.
Frequency
The frequency band for the operation of WLAN should be set to 2.4 GHz and 5 GHz, taking consideration from vehicle specification which operates on 2.4 GHz for external antenna (802.11 b/g/n) and 2.4 GHz and 5 GHz for internal antenna (802.11a/b/g/n).
Data rates
The data rates support per vehicle is according to the specification mentioned in chapter 10.4 Data rate support for 80211n . The sizing at the dealer shall take into account that the data rate per vehicle should not be less than 20 Mb it/s at 2.4 GHz frequency for 802.11 b/g/n standard for full software download performance. High throughput at HT20 and HT40 shall be supported.
Mode of operation of access point
The mode of operation shall be set to access point mode. This enables the access points to act as wireless medium between the vehicle and WLC. The mode of operation for WLC will be routed/direct/switched mode.
Channel configuration
The WLAN should be configured to auto channel selection mode to enable it to find least congested channel for data communication with the SPA vehicles. The channels used by vehicle for passive scanning are 1, 6, 11, 2, 3, 4, 5, 7, 8, 9, 10, 12 at 2.4 GHz frequency and 34, 36, 38%0, 42, 44, 46, 48, 52 56, 60 64 100, 104, 108, 112, 116, 120, 124 128, 132, 140, 149 153, 157, 161 165, 183, 184 185 187 188 189 192 196 at 5 GHz frequency.
SSID
The SSID for WLAN should be configured with a unique prefix string, which will be provided by Volvo Cars Customer Service.
7.1.2 Access point antenna
Indoor antenna
To provide 360-degree coverage pattern inside the workshop bay, indoors and hall-ways at the dealership, omnidirectional antenna shall be deployed or dipole antenna shall be deployed for a very large area like indoor hallway, service bay, area requiring shared coverage space.
These antennas should have dual band capability to transmit/receive wireless signal in both 2.4 GHz and 5 GHz, when used for indoor purpose.
Outdoor antenna
Dipole antenna should be deployed for outdoor parking bay close to workshop building and directional antenna should be deployed to focus coverage towards specific direction like long hallways or outdoor long parking bay. The range of outdoor antennas shall be limited to the workshop area as much as possible.
Dual band antenna should use both 2.4 GHz and 5 GHz for dipole antennas and single band 2.4 GHz for directional antennas, as the external antenna on the vehicle operates on 2.4 GHz.
It is also possible to use outdoor access points for wireless coverage at outside parking area.
Antenna mounting recommendations
- The mounting height of the access point should not be more than 5 meters.
- Omnidirectional is typically mounted on a ceiling and gives better ceiling floor coverage. Use of high gain omnidirectional antenna should be avoided as higher gain in an omnidirectional antenna increases horizontal beam width with a decrease in vertical beam width. This effect will be more pronounced as the ceiling height increases.
7.1.3 Authentication
EAP-TLS certificated based authentication method must be used for secured WLAN authentication for vehicles, which means each WLAN configuration must use EAP-TLS-based certificate, generated and signed by Volvo Cars Certificate Authority. The PKI certificate will be provided by Volvo Cars Customer Service. The encryption protocol shall be set for AES-CCMP.
Central RADIUS authentication server needs to be deployed at dealer network infrastructure for WLAN authentication for vehicles. RADIUS method eliminates the need to store and manage authentication data on every AP/WLC on the WLAN, making security considerably easier to manage and scale.
It is mandatory to change RADIUS timeout to 5 seconds, allowing enough time for EAP-TLS authentication.
7.2 Network specifications
The network related changes specifications are specified below.
Central systems
If a firewall is used, make sure that port 80 for http and port 443 for https are open.
Dealer Management System
Dealers can connect to their locally installed Dealer Management System (DMS) from the VIDA application by configuring a locally available "VIDA DMS interface end point".
In order for this to work the following steps must be completed:
- The DMS vendor must have implemented the VIDA DMS interface.
- The customer information in VIDA Admin must be updated.
VLAN configuration
Dealers may use same VLAN for wireless/wired network for vehicles, as well as for other purposes on the workshop.
IP subnets
A sizing needs to be done of the subnet based on the number of vehicles serviced per day or during particular time duration.
DHCP
Automatic IP address assignment through DHCP server needs to be configured for SPA vehicles that connect through Wi-Fi and Ethernet cable to the network. New DHCP scopes need to be created for the new wireless and wired subnets for each workshop.
The IP address lease period for the scope should be set to 4 hours.
Network switch port configuration
The switch ports connecting to AP and WLC should be configured for trunk mode. This is required to carry data traffic for multiple VLANs simultaneously. 100 Base-T/1000 Base-T switch ports shall be used for access point and WLC connectivity. Enable portfast on the switch port where AP is connected to enable faster joining process with WLC.
Network configuration
Necessary access rules should be enabled for facilitating the communication from the newly created wired and wireless vehicle subnets with VIDA workstation subnet through firewall access-list or layer 3 switch access-list whichever is applicable.
UDP port 13400 must be allowed from the VIDA subnet to wired and wireless vehicle subnet for directional broadcast from VIDA master and TCP port 13400 must be allowed from VIDA subnet to wired and wireless vehicle subnet for diagnostic communication.
In VIDA Admin, the VIDA administrator shall configure the "from" and "to" IP address range for sending the vehicle identification request [Unicast UDP] messages.
Necessary firewall access must be enabled to allow internally hosted RADIUS server at dealer network to connect Volvo Cars Internet hosted OCSP responder for digital certificate verification.
Network cable type
Twisted-pair cables (CATS, CAT5e, CAT6) shall be used for network connectivity.
Universal Resource Locators
The Universal Resource Locators (URLs) below will be used by VIDA. Make sure that the URLs are not blocked by a proxy or an external or internal firewall.
| Service | URL | port |
|---|---|---|
| Volvo Cars password server | TBD | TBD |
| VIDA Admin | http://vidacas.volvocars.biz/AdministrationWeb | 80 |
| TIE | https://tie.volvocars.biz | 443 |
7.3 Additional software requirements
There are different plug-ins that are needed for VIDA to work properly, these are described below.
7.3.1 IsoView
IsoView is an image viewing plug-in, automatically started together with VIDA. IsoView is included in the VIDA installation and there is no additional license fee.
7.3.2 Adobe Acrobat Reader
Adobe Acrobat Reader is included in the VIDA installation.
7.3.3 Microsoft Windows user account
In order to install VIDA, the Microsoft Windows user account has to be set to administrator.
7.4 Vehicle communication tools
A vehicle communication tool transfers data from a VIDA workstation to the correct receiver in the vehicle.
VIDA supports DICE and J2534 devices. Volvo Car Corporation recommends DICE for vehicle communication with vehicles built on platforms prior to SPA.
7.4.1 DiCE
DICE uses a Bluetooth connection to transfer information between VIDA and the vehicle. A USB cable can be used as an alternative to the Bluetooth connection.
Please note that no third party Bluetooth dongles can be used with DiCE, only Volvo Cars DiCE equipment can be used.
Multiple DiCEs
It is possible to connect more than one DiCE to VIDA and download software to as many as three vehicles in parallel and have one vehicle in the diagnostic workflow at the same time. One VIDA workstation with four DiCEs can thus handle four vehicles simultaneously.
7.4.2 J2534 devices
For all vehicles with model year 2004 and later, equipped with OBD and reprogramming capability, manufacturers shall comply with SAE J2534. There are two different versions of J2534:
- J2534-1 can be used to download software to vehicles from, and including, model year 2004. J2534-1 manages software to control modules on CAN HS (Controller Area Network High Speed) that are emission related. J2534-1 cannot be used for diagnostics.
- J2534-2 manages software download to control modules on both CAN HS and CAN MS (Controller Area Network Middle Speed).
The hardware used to validate VIDA's compliance with J2534 can be purchased separately from third-party suppliers. Validation has been done using the following J2534 pass-thru devices:
- J2534-1: Actia Passthru+ XS and CarDAQ2534.
- J2534-2s: CarDAQ Plus.
For more information regarding these devices, please contact the respective manufacturer.
8 ADMINISTRATION
8.1 Wireless LAN
WLAN, administration
8.1.1 Access points and wireless LAN controller
Separate WLAN configuration is recommended for each workshop on the WLC. The management interface and virtual interfaces on the WLC shall be configured with static IP address. The access points shall be configured with a static IP addresses and the DHCP client option shall be kept disabled.
8.1.2 Disable default manufacturer settings
The vendor specific default passwords should be changed to a complex enterprise standard password as applicable to AP, WLC and other WLAN components. The default SSID from manufacturer must be disabled.
8.1.3 Management access
Restricted management access shall be followed for AP and WLC with web interface on HTTPS and CLI on SSH only.
8.1.4 Event logging
Event logging mechanism is recommended to be configured on the AP/WLC with remote logging support like syslog.
8.1.5 Security
AP should be mounted in a secure location and access to the AP should be restricted. The signal strength should be verified with a site survey tool in workshop areas and outside parking areas.
8.1.6 Rouge AP detection
Rouge AP detection should be enabled to identify unregistered AP and ensure that only authorized APs are registered. Rogue management allows the network administrators to monitor and eliminate wireless security intrusion. WLC provides two methods of rogue detection, namely Rogue Location Discovery Protocol (RLDP) and passive operation that enable a complete rogue identification and containment solution.
8.1.7 Intrusion detection
Wireless IDS must be enabled to detect intrusion and threat for the wireless network.
8.2 High availability
It is recommended that all the network devices and servers should be configured in high availability mode.
It is highly recommended to have redundant Internet connectivity for high availability. Dealerships should consider having Internet connectivity from multiple service providers to maintain high availability.
It is also recommended to have redundant power supply for the network devices and servers.
8.3 Endpoint security
Licensed and regularly updated version of antivirus software should be used to protect all servers and workstations.
8.4 Patch management
Security patches (Microsoft or non-Microsoft) should be applied on workstations, servers and non-windows systems on monthly/quarterly basis as applicable.
8.5 Administrative rights
The VIDA workstation shall also be enabled for WebEx installation and Volvo Cars special software download tools in case central support is required. The required administrative rights must be granted to the technicians to install applications in case central support is required.
8.6 NTP sync
It is mandatory to use NTP synchronization for all the network devices and servers.
8.7 Backup
It is mandatory to perform configuration backup of network devices and servers on regular basis (weekly/monthly/quarterly).
9 PRODUCT SPECIFICATIONS
9.1 Product specifications for AP
The following are the product specifications under various standards related to the access point.
9.1.1 Wireless standards
| Standards | Support |
|---|---|
| IEEE Standards | Single Radio - 802.11n, 802.11g, 802.11b, 802.11a 802.11ac |
| Ports | Ethernet 100BASE-T/1000BASE-T support |
| Band support | Dual Band |
| Cabling type | Twisted-pair cabling (Cat 5, Cat 5e, Cat 6) |
| PoE support | Yes |
| Management access | Web interface (HTTPS), CLI (SSH) |
| SNMP version | 1, 2C, 3 |
| Event logging | Event logging, remote Logging |
| DHCP support | DHCP server, external DHCP server |
| Backward compatible | Yes |
| Spec/modulation | Radio and modulation type: 802.11b/DSSS, 11g/OFDM, 11n/OFDM, 11a/OFDM, DSSS |
| Operating frequency | 2.4, 5 GHz |
| Channels | 2.4 GHz: 1, 6, 11, 2, 3, 4, 5, 7, 8, 9, 10, 12 5 GHz: 34, 36, 38, 40, 42, 44, 46, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 140, 149, 153, 157, 161, 165, 183, 184, 185, 187, 188, 189, 192, 196 |
| Channel selection | Auto-channel selection to find the least congested channel |
| WLAN mode at 2.4 GHz | 802.11b, 802.11g, 802.11b/g mixed, 802.11b/g/n, 802.11g/n, 802.11n |
| WLAN mode at 5 GHz | 802.11n |
| Bandwidth support | 20 MHz, 40 MHz |
| Spatial stream | MIMO |
| Integrated antenna | Yes (optional) |
| Support for external antenna Antenna type | Yes |
| Antenna type | Omni directional/dipole/directional |
| Transmit power | Dependent on vendors as well country/region |
| Minimum antenna gain in dBi | 3 |
| Receiver sensitivity | Vendor dependent. Data rate criteria shall be used as per MCS index value |
| High throughput | Support HT20 & HT40 |
| Data rate support at 2.4 GHz frequency | 802.11b: 1, 2, 5.5, 11 Mbps using 20 MHz channels. 802.11g:6, 9, 12, 18, 24, 36, 48, 54 Mbps using 20 MHz channels. 802.11n:6.5, 13, 19.5, 26, 39, 52, 58.5, 65, 78, 104, 117, 130 using 20 MHz channels. 802.11n:13.5, 27, 40.5, 54, 81, 108, 121.5, 135, 162, 216, 243, 270 using 40 MHz channels. |
| Data rate support at 5 GHz frequency | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mb/s using 20 MHz channels 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 115.6, 130, 144.4 Mbps using 20 MHz channels. 802.11n:15, 30, 45, 60, 90, 120, 135, 150, 180, 240, 270, 300 Mb/s using 40 MHz channels. |
| QoS support | Full |
9.1.2 Network capability
| Standards | Support |
|---|---|
| Service Set Identifier (SSID) | Yes. Supports ESS |
| Multiple BSSID support | Yes |
| VLANs | 802.1q support |
| Spanning tree | Supports 802.1q spanning tree protocol |
| 802.11d regulatory domain | Support. (Enables the AP to provide radio channel settings for client devices, facilitating easy client access as they move across regulatory domains.) |
9.1.3 Wireless security standards
| Standards | Support |
|---|---|
| WEP/WPA/WPA2 | WPA2 |
| 802.1X | Wireless clients can be authenticated through IEEE 802.1X |
| Authentication method support | EAP-TLS, PEAP-TLS, EAP-FAST |
| 802.1X supplicant | Support 802.1X supplicant on the Ethernet port to allow the access point to authenticate itself to the network |
| RADIUS server | Yes |
| WPS | Support WPS, a WI-FI Alliance specification for simple and secure setup of a wireless network |
| IDS/IPS | Support IDS/IPS for external network intruders/threats |
| Rogue access point detection | Yes |
| Encryption support | AES(128, 256 bits), AES-CCMP, TKIP |
| Certificate | Support for X509 PKI certificate |
9.2 Product specifications for wireless LAN controller
The following are the product specifications under various standards related to the wireless LAN controller.
9.2.1 Wireless standards
| Standards | Support |
|---|---|
| IEEE Standards | 802.11n, 802.11g, 802.11b, 802.11a, 802.11ac |
| Ports | Ethernet 100BASE-T/1000BASE-T, IEEE 802.1Q Vtagging, fiber channel |
| Cabling type | Twisted-pair cabling (Cat 5, Cat 5e, Cat 6) |
| RFC compliance | RFC 5415 CAPWAP protocol specification RFC 5416 CAPWAP binding for 802.11 |
| Management access | Web interface (HTTPS), command line (SSH) |
| SNMP version | 1, 2C, 3 |
| PoE support | Yes |
| Event logging | Syslog support, remote logging |
| DHCP support | DHCP server, External DHCP server |
| Backward compatible | Yes |
| High availability support | Yes |
| Mobility support | Layer 2 and 3 |
| Bi-directional rate limit support | Yes |
| RF management | Automated access point power/channel auto-tuning, Support to provide real-time and historical information about RF interference impacting network performance |
9.2.2 Network capability
| Standards | Support |
|---|---|
| Local switching and routing | Enables data forwarding in WLC |
| AP support | APs managed by WLC across direct, switched or routed connections |
| VLANs | 802.1q tagging and trunking support |
| Spanning tree | 802.1d Spanning tree and per-VLAN spanning tree (PVST+) |
| AP management | Tracking the location, roaming history, virtual private group, network addresses, state, activity, errors, usage and other attributes by user name, session, VLAN, or user group |
9.2.3 Wireless security standards
| Standards | Support |
|---|---|
| Security standards | WPA, WPA2, RSN, IPSec, DTLS |
| Authentication method support | EAP-TLS, EAP-FAST, EAP-TTLS, PEAP-TLS |
| External RADIUS support | Yes |
| Authentication, Authorization, and Accounting (AAA) | RADIUS Support for EAP (EAP-TLS) |
| RADIUS Authentication, Accounting, Tunnel Accounting, Extensible Protocol | |
| Dynamic authorization extensions to RADIUS | |
| IEEE 802.1X RADIUS guidelines | |
| ACL support | Yes |
| Encryption support | AES:CBC, CCM, CCMP |
| SSL and TLS: RC4 128-bit and RSA 1024 and 2048-bit | |
| DTLS:AES-CBC | |
| IPSec:DES-CBC, 3DES, AES-CBC | |
| Certificate | Support for X.509 PKI certificate |
| Rogue access point detection | Yes |
9.2.4 Scalability standards
| Parameters | Support |
|---|---|
| Min and max WLAN support (small to large enterprise) | 16 To 512 |
| Min and max VLAN support (small to large enterprise) | 16 To 4096 |
| Min and max access points support (small to large enterprise) | 5 To 6000 |
| Min and max client support (small to large enterprise) | 3000 To 64000 |
| Min and max throughput (small to large enterprise) | 500 Mbps to 10 Gbps |
10 APPENDICES
10.1 Examples of network architecture
The network designs of workshops vary in several ways from one another. This chapter considers a set of typical network architectures and illustrates possible ways to incorporate the requirements for VI DA for wired and wireless infrastructure in those.
It is recommended that dealerships consider their existing network infrastructure, size of operation and scalability aspects in conjunction with below design examples to evolve a suitable architecture and required components.

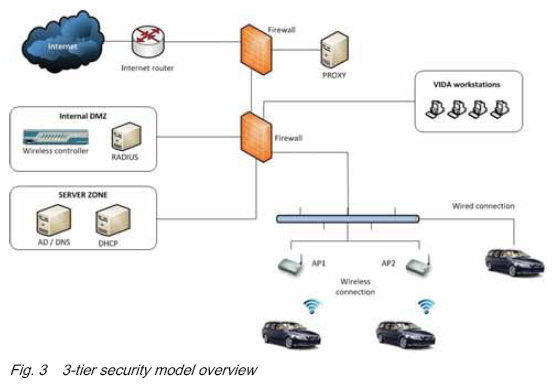

10.1.1 Typical 3-tier architecture
This section details a 3-tier network security architecture example which forms an enhanced security model and consists of multilayer firewalls, providing security for the Internet zone, DMZ, transport zone and internal zone.
Internet zone - Represents untrusted public network.
DMZ - Hosts components which provide services for communicating with public Internet resources.
Transport zone - Hosts application services which require communication with DMZ and internal production zone to enhance security without exposing the production service directly to Internet facing DMZ.
Internal zone - Hosts core applications services.
Complying with the above, the wireless and wired zone can be separate zones, providing secure network connectivity for the vehicles by authenticating and authorizing through AP, WLC, and RADIUS server. Considering various network topology at dealerships, it has been classified into three categories:
Type 1 (A & B) - Multi Site Single Internet gateway.
Type 2 - Multi Site Multi Internet gateway.
Type 3 - Single Site Single Internet gateway.

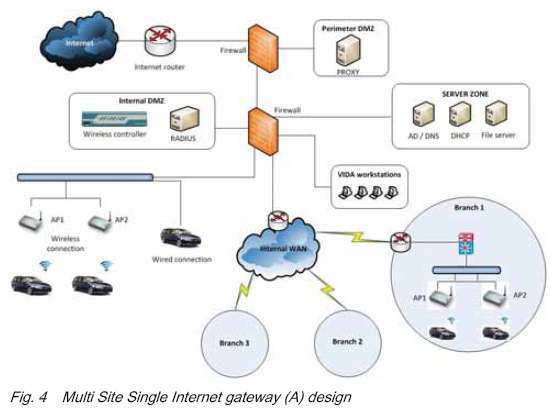

10.1.2 Type 1 (A)-Multi Site Single Internet gateway
Keeping in line with a 3-tier network security architecture, the following diagram shows the setup for multi site dealership infrastructure where all the branch networks are connected internally through WAN network. This kind of design will facilitate the usage of shared Internet through single Internet gateway. The wired and wireless network for vehicles can be created across individual sites and the centralized services like RADIUS, WLC, DHCP, proxy etc. are configured at central location.
Features
- Multilayer firewalls to protect and provide secure connectivity.
- All sites of the dealership connected over WAN and sharing common Internet.
- Access point deployment at individual sites.
- Dedicated central WLC deployment or multiple WLC deployment with respect to various connected branches considering number sites, internal WAN bandwidth and number of access points used
- Separate WLAN configuration for individual sites.
- Centralized RADIUS server for authentication.
- Single DHCP server for IP address assignment for SPA vehicles that connect through Wi-Fi and Ethernet cable to the network.

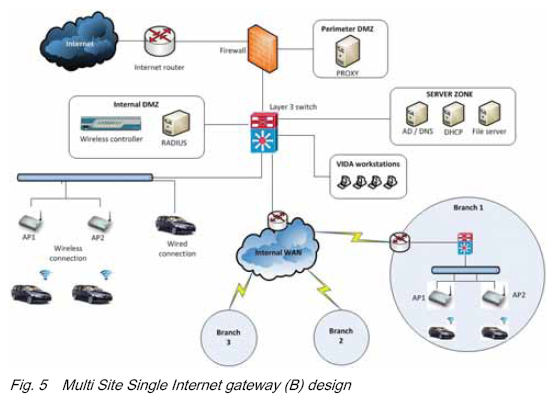

10.1.3 Type 1 (B)-Multi Site Single Internet gateway
The following diagram is similar to Type 1 (A), however instead of multilayer firewall setup; it can be of single perimeter firewall and layer 3 switch to have multiple VLANs to segregate different internal zones through access lists.
Features
- Single firewall to protect and provide secure connectivity for the Internet.
- Layer 3 access list to protect internal network resources.
- All sites of the dealership connected over WAN and sharing common Internet.
- Access point deployment at individual sites.
- Dedicated central WLC deployment or multiple WLC deployment with respect to various connected branches considering number sites, internal WAN bandwidth and number of access points used
- Separate WLAN configuration for individual sites.
- Centralized RADIUS server for authentication.
- Single DHCP server for IP address assignment for SPA vehicles that connect through Wi-Fi and Ethernet cable to the network.

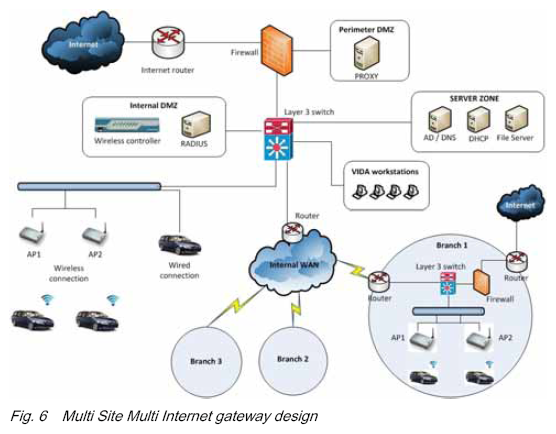

10.1.4 Type 2 - Multi Site Multi Internet gateway
In this scenario, the network setup is common as Type 1 (A) and Type 1 (B), however the Internet gateway can be multiple and operate from different site as a part of business continuity plan, disaster recovery plan or depending upon geographical region of the sites to reduce latency for the Internet access. The centralized services for infrastructure components can be at a single location or can be distributed across multiple locations.
Features
- Multiple Internet connectivity at different sites.
- Sharing of Internet connectivity among multiple sites.
- Access point deployment at individual sites.
- Dedicated central WLC deployment or multiple WLC deployment with respect to various connected branches considering number sites, internal WAN bandwidth and number of access points used
- Separate WLAN configuration for individual sites.
- Centralized RADIUS server for authentication.
- Multiple DHCP servers for IP address assignment for SPA vehicles that connect through Wi-Fi and Ethernet cable to the network.
- Layer 3-based access list to protect internal network resource.

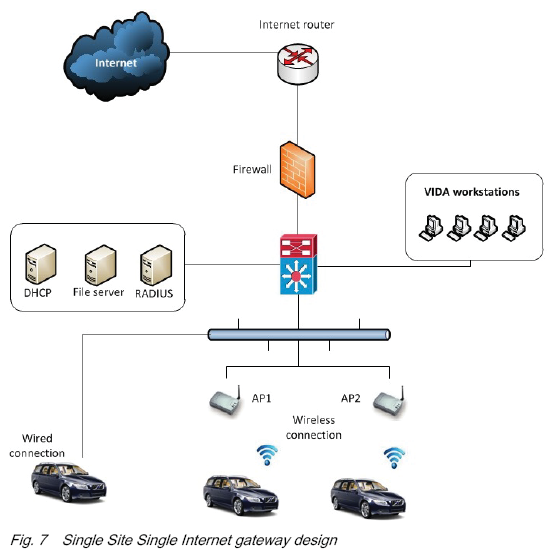

10.1.5 Type 3 - Single Site Single Internet gateway
This can be one of the possible examples, where the network infrastructure is very minimal in comparison to enterprise-level advanced network models. It is one of the best possible ways of establishing wired and wireless network for vehicles through a layer 3 switch by creating separate VLAN and configuring access points. This scenario is applicable for those workshops which have single site with single point for Internet access.
Features
- Single Internet connectivity through firewall and Internet router.
- Layer 3-based multi VLAN based network.
- Access point deployment at single site.
- Wireless LAN controller recommended if the number of access points is more than 5.
- WLAN configuration.
- RADIUS server for authentication.
- Single DHCP server for IP address assignment for SPA vehicles that connect through Wi-Fi and Ethernet cable to the network.
10.2 Wireless radios
| 802.1 protocol | A | B | G | N | |||||
| Frequency (GHz) | 2.4 | 5 | 2.4 | 2.4 | 2.4 | 5 | |||
| Bandwidth (MHz) | 20 | 20 | 20 | 20 | 20 | 40 | 20 | 40 | |
| Data rate per stream (Mbit/s) | 1, 2 | 6, 9, 12, 18, 24, 36, 48, 54 | 1, 2, 5.5, 11 | 6, 9, 12, 18, 24, 36, 48, 54 | 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 | 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 | 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2 | 15, 30, 45, 60, 90, 120, 135, 150 | |
| Allowable Multiple Input Multiple Output (MIMO) streams | 1 | 1 | 1 | 1 | 4 | ||||
| Modulation | DS SS, FH SS | OFDM | DSSS | OFDM, DSSS | OFDM | ||||
| Approximate indoor range | (m) | 20 | 35 | 35 | 38 | 70 | |||
| (ft) | 66 | 115 | 115 | 125 | 230 | ||||
| Approximate outdoor range | (m) | 100 | 120 | 140 | 140 | 250 | |||
| (ft) | 330 | 390 | 460 | 460 | 820 | ||||
| Max. No. of non-overlapping channels | - | 21 | 3 | 3 | 3 | 1 | 21 | 9 | |
10.3 RF barriers
| RF barrier | Attenuation |
|---|---|
| Air | Minimum |
| Wood | Low |
| Plaster | Low |
| Synthetic material | Low |
| Glass | Low |
| Water | Medium |
| Bricks | Medium |
| Marble | Medium |
| Paper | High |
| Concrete | High |
| Metal | Very high |
10.4 Data rate support for 802.11n
Modulation and Coding Scheme (MCS) index values can be used to determine the likely data rate of wireless connection. The MCS value essentially summarizes the number of spatial streams, the modulation type and the coding rate that is possible when connecting a wireless access point. The actual MCS will depend on variables such as hardware design and local interference. If a wireless connection cannot be maintained, i.e. there are too many CRC errors being experienced on the link, the MCS value can be lowered which will reduce the error rate, but reduce data rate.
| MCS index | GI2 = 800ns | GI = 400ns | ||
|---|---|---|---|---|
| 20-MHz Rate (Mbps) | 40-MHz Rate (Mbps) | 20-MHz Rate (Mbps) | 40-MHz Rate (Mbps) | |
| 0 | 6.5 | 13.5 | 7.2 | 15 |
| 1 | 13 | 27 | 14.4 | 30 |
| 2 | 19.5 | 40.5 | 21.7 | 45 |
| 3 | 26 | 54 | 28.9 | 60 |
| 4 | 39 | 81 | 43.3 | 90 |
| 5 | 52 | 108 | 57.8 | 120 |
| 6 | 58.5 | 121.5 | 65 | 135 |
| 7 | 65 | 135 | 72.2 | 150 |
| 8 | 13 | 27 | 14.4 | 30 |
| 9 | 26 | 54 | 28.9 | 60 |
| 10 | 39 | 81 | 43.3 | 90 |
| 11 | 52 | 108 | 57.8 | 120 |
| 12 | 78 | 162 | 86.7 | 180 |
| 13 | 104 | 216 | 115.6 | 240 |
| 14 | 117 | 243 | 130 | 270 |
| 15 | 130 | 270 | 144.4 | 300 |
10.5 Vendor reference for WLAN
The below list presents recommended, but not mandatory vendors. It is the specifications that need to be met.
- Alcatel-Lucent
- Aruba Networks
- Hewlett-Packard
- Cisco
- Meru Networks
- Nortel Networks
- Siemens
- Juniper
- Fortinet
- Avaya
10.6 Vendor reference for NAS storage
The below list presents recommended, but not mandatory vendors. It is the specifications that need to be met.
- Seagate
- Netgear
- NetApp
- Hitachi
- IBM
- HP
- Dell
- EMC
11 ABBREVIATIONS
ACL - Access Control Lists
AES-CCMP - AES Counter mode CBC MAC Protocol
AP - Access Point
AS - Authentication Server
BSSID - Basic Service Set Identifier
CAT - Category (cable)
CAN HS - Controller Area Network High Speed
CAN MS - Controller Area Network Middle Speed
CLI - Command Line Interface
DHCP - Dynamic Host Configuration Protocol
DiCE - Diagnostic Communication Equipment
DMS - Dealer Management System
DMZ - Demilitarized Zone
DoIP - Diagnostics over IP
DTLS - Datagram Transport Layer Security
EAP-TLS - Extensible Authentication Protocol-Transport Layer Security
ESS - Extended Service Set
IDS/IPS - Intrusion Detection System/Intrusion Prevention System
IEEE - Institute of Electrical and Electronics Engineers
IP - Internet Protocol
LAN - Local Area Network
MCS - Modulation and Coding Scheme
NAS - Network Attached Storage
NTFS - New Technology File System
NTP - Network Time Protocol
OBD - On Board Diagnosis
OCSP - Online Certificate Status Protocol
PoE - Power over Ethernet
PCI - Peripheral Component Interconnect
PKI - Public-key infrastructure
RADIUS - Remote Authentication Dial In User Service
RAM - Random Access Memory
RF - Radio Frequency
RFC - Request For Comments
SNMP - Simple Network Management Protocol
SPA - Scalable Product Architecture
SSH - Secure Shell
SSID - Service Set Identifier
SWDL - Software download
TBD - To Be Decided
TCP - Transmission Control Protocol
TIE - Technical Information Exchange
UDP - User Datagram Protocol
USB - Universal Serial Bus
URL - Universal Resource Locator
VIDA - Vehicle Information and Diagnostics for Aftersales
VLAN - Virtual Local Area Network
VST - Volvo Standard Time
WLAN - Wireless Local Area Network
WLC - Wireless LAN controller
WPA - Wi-Fi Protected Access
12 HISTORY LOG
12.1 320US01
Document created.
13 INDEX
1, 2, 3...
3-tier ........................................................ 26
A
Abbreviations ........................................... 34
Access point mode .................................. 14
Access points ............................................ 8
Access point specifications ...................... 21
Access rules ............................................ 16
Administrative rights ................................ 20
Adobe Acrobat Reader ............................ 17
Antenna ................................................... 14
Antivirus software .................................... 20
B
Backup ..................................................... 20
C
Cable type, Ethernet ................................ 10
Cable type, network ................................. 16
Central systems ....................................... 15
Channel configuration .............................. 14
Connection types ....................................... 5
Connection types for SPA vehicles ........... 5
Connectivity scenarios ............................... 5
D
Data rates ................................................ 14
DHCP server ....................................... 9, 16
Diagnostic requirements ............................ 7
DiCE ........................................................ 18
DMS ......................................................... 15
E
EAP-TLS .................................................. 15
Electronic Wiring Diagram ....................... 11
F
Firewall .................................................... 16
Firewall, open ports ................................. 15
Frequency band ....................................... 14
H
High availability mode .............................. 19
I
Installer package ....................................... 7
IP subnets ................................................ 16
IsoView .................................................... 17
J
J2534 ....................................................... 18
L
Launch plan ............................................... 5
M
Mandatory infrastructure components ....... 7
MCS index ............................................... 32
Mobile Internet ........................................... 7
Multi Site Multi Internet gateway .............. 29
Multi Site Single Internet gateway ..... 27, 28
N
Network architecture ................................ 26
Network configuration .............................. 16
Network examples ................................... 26
Network specifications ............................. 15
Network standard .................................... 14
Network storage ........................................ 7
Network switch port configuration ............ 16
NTP synchronization ............................... 20
P
Performance improvement ........................ 7
Point-to-Point requirements ..................... 10
Public Internet ............................................ 7
R
RADIUS ..................................................... 9
Requirements, overview ............................ 6
RF barriers ............................................... 32
S
Security patches ...................................... 20
Service Set Identifier ........................... 9, 14
Single Site Single Internet gateway ......... 30
SPA, mandatory diagnosis components .... 5
SPA vehicles ............................................. 5
T
TIE ........................................................... 12
Timeline ..................................................... 5
U
URLs ........................................................ 17
V
Vehicle communication tools ................... 17
Vendor reference ..................................... 33
VIDA Admin ....................................... 15, 16
VIDA Menu Pricing .................................. 13
VLAN configuration .................................. 16
W
Windows user account ............................ 17
Windows version ....................................... 7
Wireless configurations ........................... 14
Wireless radios ........................................ 31
WLAN definition ......................................... 8
WLAN requirements .................................. 8
WLC ........................................................... 9
Workstation requirements .......................... 7
