Connector D (from structure week 200848)

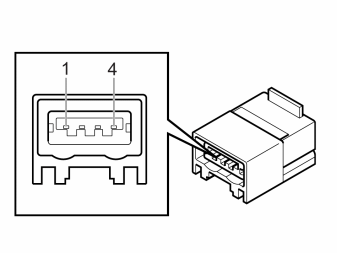

Fig 1: Identifying 4-Pin Connector

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE, CONNECTOR D

Control module terminal	Signal type	Ignition on	Miscellaneous
#D1	Power supply	-	+5 V to the connected USB device.
#D2	Data (-)	-	-
#D3	Data (+)	-	-
#D4	Signal ground	-	-
