Installing The Infotainment Control Module (ICM) / Display, Front Panel And Electrical Switch Modules

Fig 1: Panel Connectors

Courtesy of VOLVO CARS CORPORATION

Reconnect connectors.

Position the modules, starting with the display.

NOTE:

Check that the cable harnesses are not trapped.

Install and tighten the screws.

NOTE:

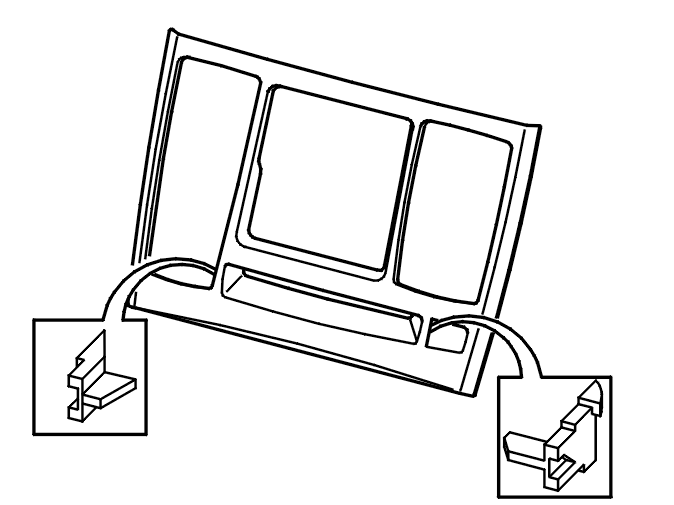

Check that both the fibre optics are secured in the panel. See the illustration.

Press the panel into place.
