Connecting The Breakout Box

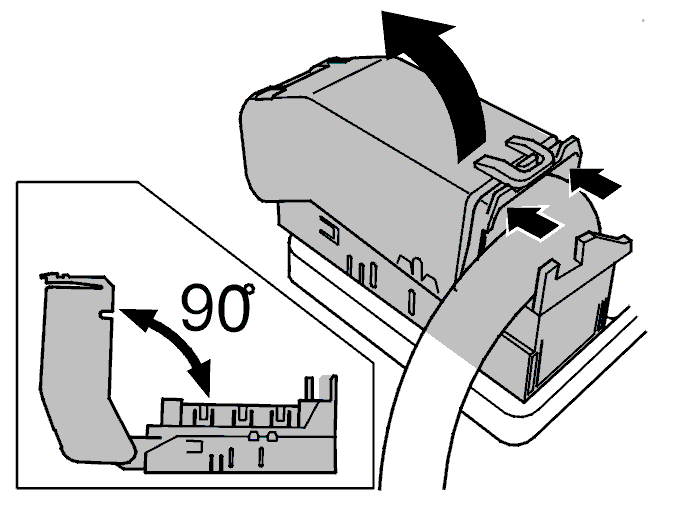

Fig 1: Identifying Catch & Connector

Courtesy of VOLVO CARS CORPORATION

Ignition off
Expose the brake control module. See BRAKE CONTROL MODULE (BCM), REPLACING
Disconnect the control module by pressing in the catch on top of the connector and carefully work the cover up so that the connector lifts.
CAUTION:
Do not bend the cover up by more than 90°.
Check in particular that the male and female terminals on the control module and the control module connector are intact, secure and cannot be pressed in. Check that the female terminal cables are securely connected
In particular, check the terminal pins relevant to the diagnostic trouble code (DTC) / symptom. See SIGNAL SPECIFICATION, BRAKE CONTROL MODULE (BCM) WITH STC/ TRACSor see SIGNAL SPECIFICATION, BRAKE CONTROL MODULE (BCM) WITH DSTC (DYNAMIC STABILITY AND TRACTION CONTROL)
Connect adapter see 9512958 to the control module's connector (wiring side) and connect breakout box see 9511428 to the adapter.
The breakout box is designed to facilitate reading off the control module input and output signals when the control module is connected; and the resistance of the cable and component when the control module is disconnected. The use of a breakout box reduces the risk of accidental short-circuits and damage to the connector pins.
