Removing The Control Module

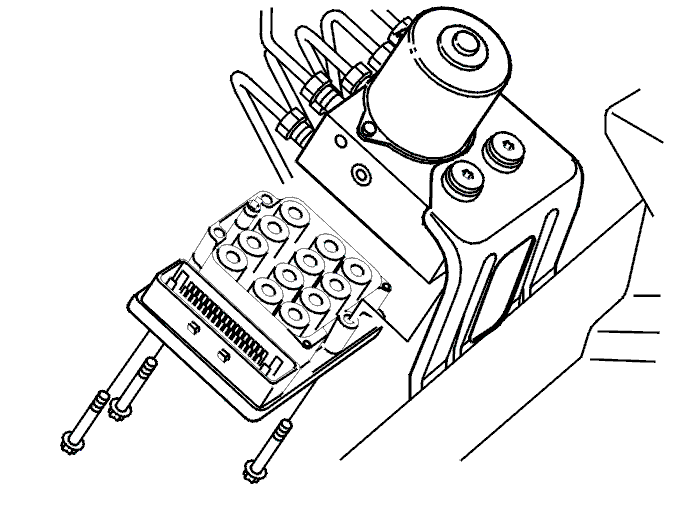

Fig 1: Brake Control Module And Screws

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Use a 6 mm torx external socket.

Carefully pull the control module down so that the terminal pin on the control module comes loose inside the ABS modulator.

Continue pulling the control module down towards the brake lines and lift it out.
