Checking The Component

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS CORPORATION

• Ignition off.

  Disconnect left seat heater 9/12.

  Check the left seat heater module and connector. Check for oxidation.

  Other information:

  • see CHECKING WIRING AND TERMINALS .

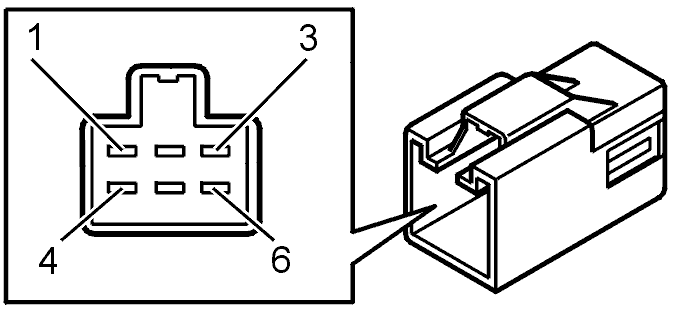

  Fig 2: Identifying Connector Terminals

  Courtesy of VOLVO CARS CORPORATION
  Fig 3: Identifying Ohm Meter

  Courtesy of VOLVO CARS CORPORATION

Was a fault detected?

• YES

  Refer to VERIFICATION

• NO

  Refer to CHECKING THE CABLE
