Signal Specification
| U= | DC voltage in volts (V) | UAC = | AC voltage in volts (V) |
| Ubat = | Battery voltage (V) | f = | Frequency in Hertz (Hz) |
| Ulow = | Voltage approximately 0 V | t = | Time in seconds |
| PWM = | Pulse width modulated signal as a % | - | - |

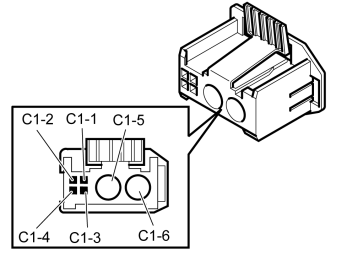

CONNECTOR C1
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Other |
| - | #C1-1 | Power supply | U = Ubat | - |
| - | #C1-2 | Ground, power supply | U = Ulow | - |
| - | #C1-3 | Reserve | - | - |
| - | #C1-4 | Reserve | - | - |
| - | #C1-5 | MOST input signal | Optical input signal when the MOST network is activated | - |
| - | #C1-6 | MOST output signal | Optical output signal when the MOST network is activated | - |
