Checking Communication With The Gear Selector Module (GSM)

Fig 1: Identifying Ignition ON

Courtesy of VOLVO CARS CORPORATION

Ignition on
Gear selector in position P
Check if communication with the gear selector module (GSM) functions by reading the status for the Winter program selector (W ).
Activate and deactivate the function by pressing the switch. The status must change.
The fault is permanent if the value does not change.

If the status switches it means that the fault was present previously but is not active now. There is an intermittent fault.

Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA
Courtesy of VOLVO CARS CORPORATION

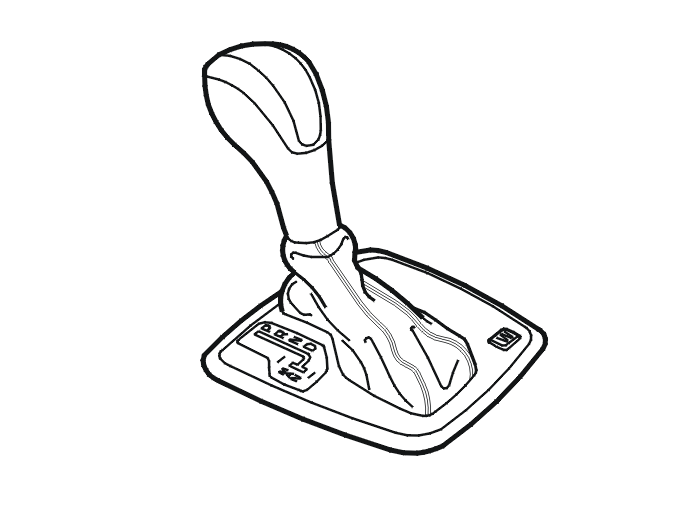

Fig 3: Identifying Automatic Transmission Gear Shifter With Manual Gear Changer
Courtesy of VOLVO CARS CORPORATION
