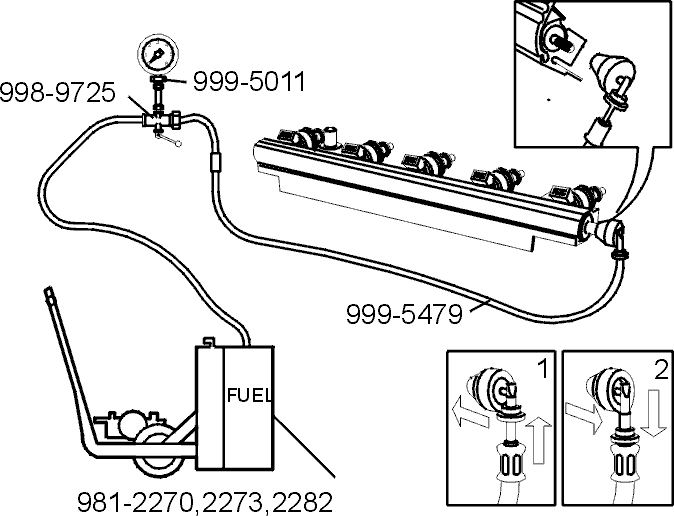

Connecting Fuel Pressure Gauge
Courtesy of VOLVO CARS CORPORATION
- Supplement pressure gauge
see 9995011
with adapter
see 9989725
and nipple
see 9995479
before use.
- Connect adapter to valve on fuel rail, with adapter in locked position ("1" valve closed in illustration).
- Turn pressure gauge cock towards nipple
see 9995479
.
- Connect pressure gauge second connector to fuel draining unit
see 9812270
,
see 9812273
and
see 9812282
.
- Unlock adapter ("2" valve open in illustration).
