Installing The Climate Control Module (CCM)

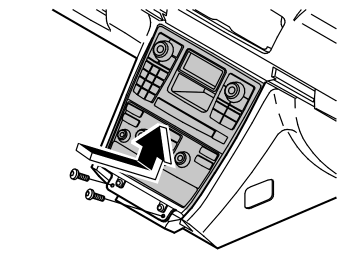

Fig 1: Identifying Dashboard Environment Panel Screws & Infotainment Panel

Courtesy of VOLVO CARS CORPORATION

Install:

• the dashboard environment panel using the two screws
• the infotainment panel so that it hooks into the dashboard environment panel.

Screw the infotainment panel into place using the four screws.

Connect the connectors.

Angle in the upper section of the infotainment control module first. Then screw the lower edge into place using the two lower screws.
