Resistance Values, Evaporator Temperature Sensor
The component specification gives the value of the component without the connector connected.
MEASUREMENT VALUE
| Measurement values, resistance | Other |
| -55°C = approximately 288.9 kΩ -50°C = approximately 201.0 kΩ -45°C = approximately 141.5 kΩ -40°C = approximately 100.9 kΩ -35°C = approximately 72.8 kΩ -30°C = approximately 53.1 kΩ -25°C = approximately 39.1 kΩ -20°C = approximately 29.1 kΩ -15°C = approximately 21.9 kΩ -10°C = approximately 16.6 kΩ -5°C = approximately 12.7 kΩ 0°C = approximately 9.8 kΩ 5°C = approximately 7.6 kΩ 10°C = approximately 6.0 kΩ 15°C = approximately 4.7 kΩ 20°C = approximately 3.8 kΩ 25°C = approximately 3.0 kΩ 30°C = approximately 2.4 kΩ 35°C = approximately 2.0 kΩ 40°C = approximately 1.6 kΩ 45°C = approximately 1.3 kΩ 50°C = approximately 1.1 kΩ 55°C = approx. 895.9 Ω 60°C = approx. 746.4 Ω 65°C = approx. 624.9 Ω 70°C = approx. 525.6 Ω 75°C = approx. 444.4 Ω 80°C = approx. 377.4 Ω |

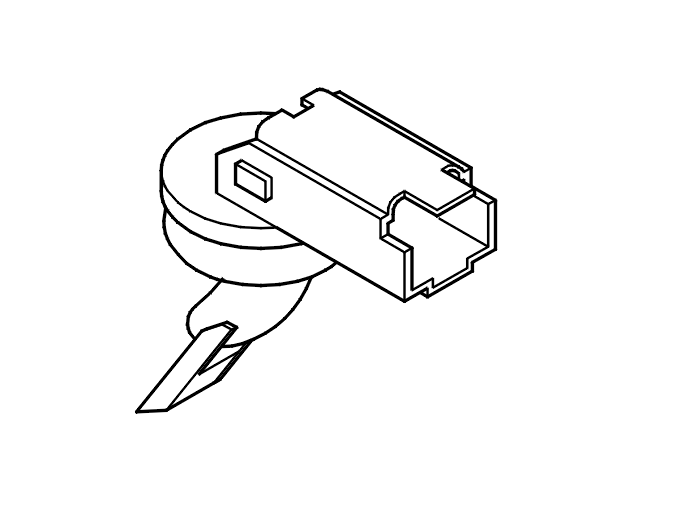

Measure the resistance between terminals #1 and #2. |
