General Audio Player Module [2007-2011]: Removal
CAUTION:

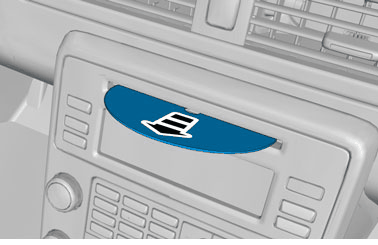

Make sure that any disc is removed.
CAUTION:
Make sure to eject the discs one at a time in numerical order, starting with disc No 6 followed by disc No 5.
Remove center console, refer to: CENTER CONSOLE
CAUTION:

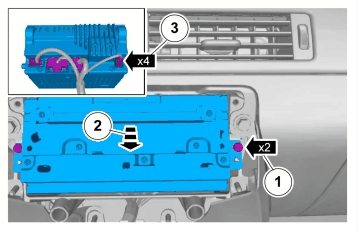

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
NOTE:
Make sure that the component terminals are not bent or damaged.
NOTE:
Make sure that the optical connectors are clean and free of foreign material.
