Power Liftgate Module [2012-2017]: Removal

Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

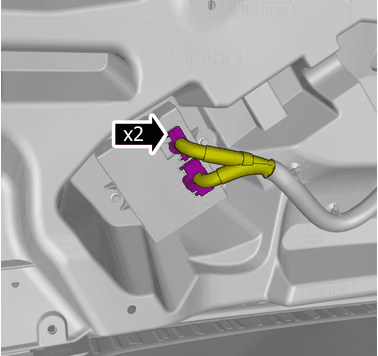

Disconnect the connectors.

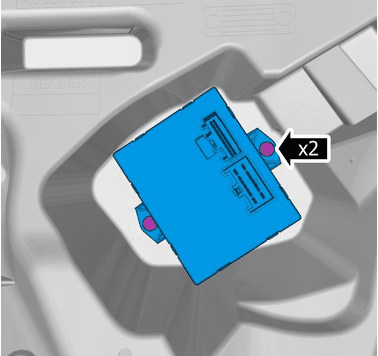

Remove the screws.

Torque:  M6, 10Nm

Remove the marked part.

VEHICLES MANUFACTURED IN CHINA, VIN-NUMBER STARTING WITH: LVY

Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

Courtesy of VOLVO CARS CORPORATION

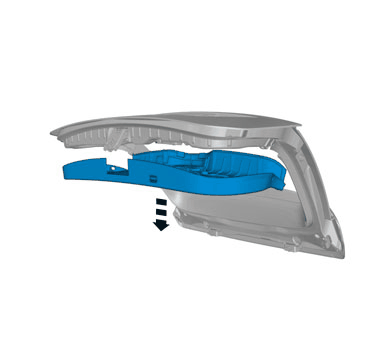

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

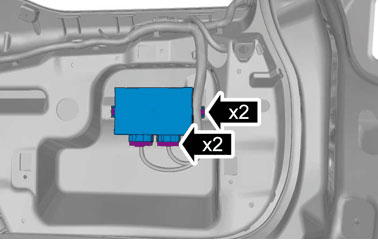

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque:  M5, 5Nm

Remove the marked part.
