Removing The Engine Speed (Rpm) Sensor

NOTE:

As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Fig 1: Engine And Stabilizer Brace

Courtesy of VOLVO CARS CORPORATION

Remove:

the hose clamp for the air cleaner (ACL) / fresh air intake
the air cleaner (ACL) in the intake pipe
lift out the air cleaner (ACL).

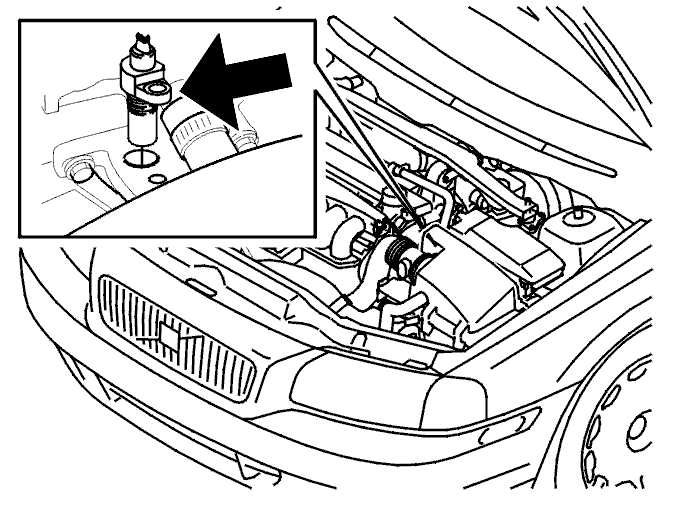

Fig 2: Identifying Engine Speed (RPM) Sensor

Courtesy of VOLVO CARS CORPORATION

Remove the mounting nut for the sensor.

Pull up the sensor.
